Si2a-PD

Fixed-Mount Acoustic Imaging Camera for Continuous Monitoring of Partial Discharge Detection

購入後のお問い合わせ
Product view 1

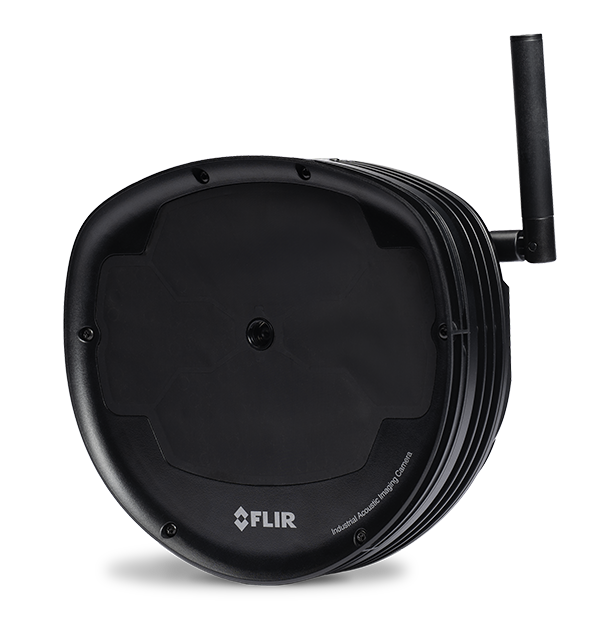

Product view 2

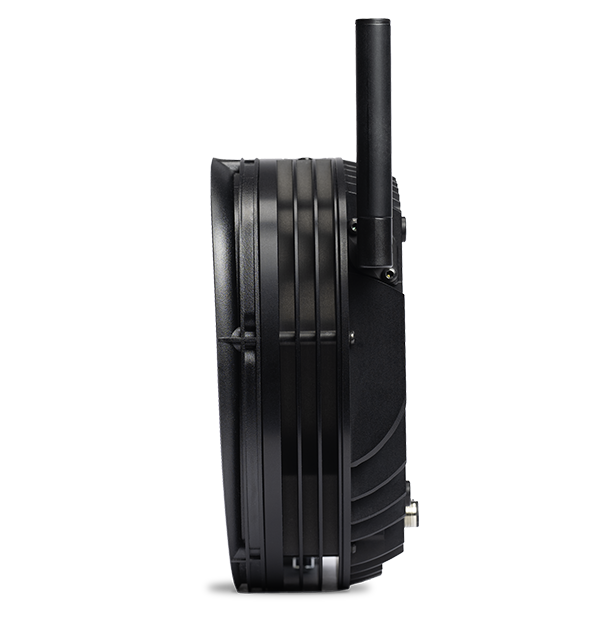

Product view 3

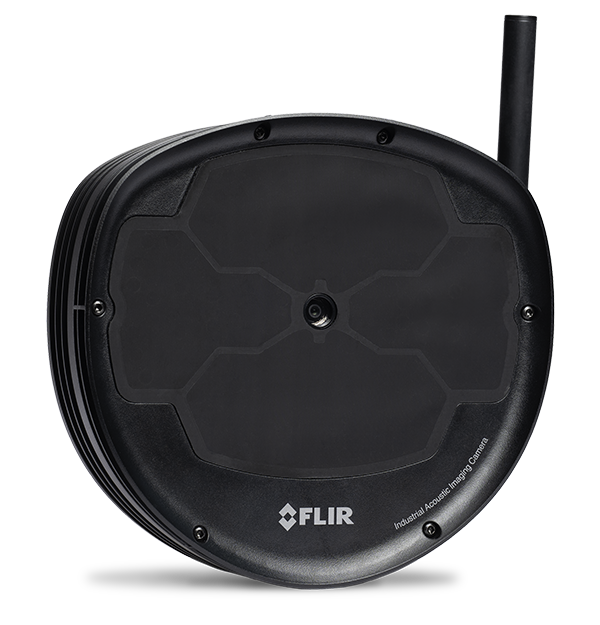

Product view 4

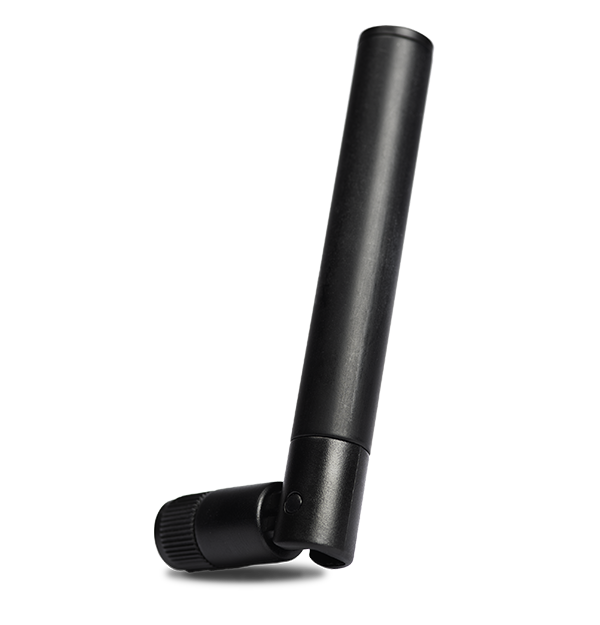

Product view 5

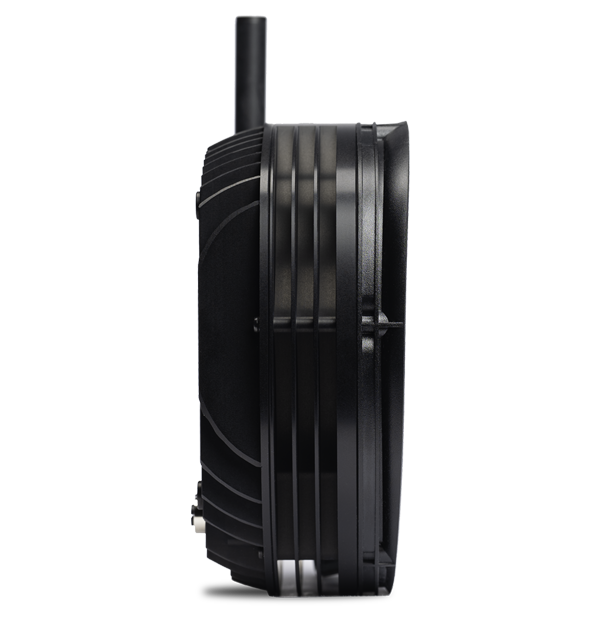

Product view 6

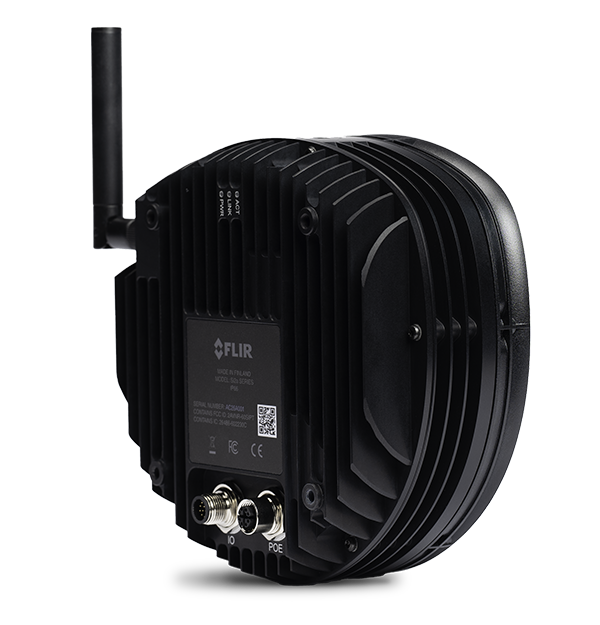

Product view 7

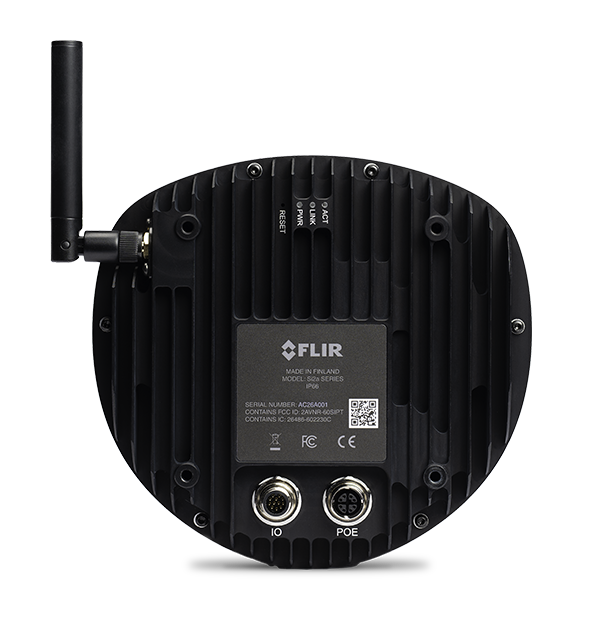

Product view 8

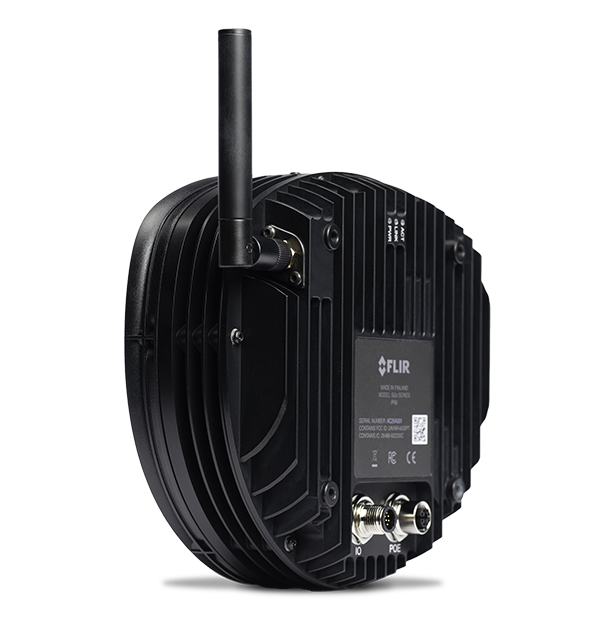

Product view 9

The Flir Si2a-PD keeps a constant listen on your most critical electrical assets—detecting, locating, and assessing partial discharge, corona, and arcing early, from up to 200 m (656 ft) away, so you can keep teams out of hazardous areas and prevent faults from turning into outages, incidents, or costly downtime. AI-enhanced detection and analysis turns complex signals into clear, actionable insight with minimal intervention, while its IP66-rated, VESA-mountable design makes permanent installation simple in harsh environments and easy to integrate into your wider data systems—so your switchgear, substations, and GIS stay safer, stronger, and continuously operational.

Provides continuous 24/7 condition monitoring, enabling early detection of partial discharge (PD), corona, arcing, and other electrical anomalies to help prevent unplanned outages and improve operational safety.
Detects, locates, classifies, and assesses PD faults from distances of up to 200 m (656 ft), supporting safe inspections, featuring an IP66 with VESA mounting options for reliable, flexible installations outside hazardous zones and in harsh industrial environments.
AI enhanced detection and analysis that delivers accurate results with minimal operator intervention and enables enterprise ready system integration and data management.

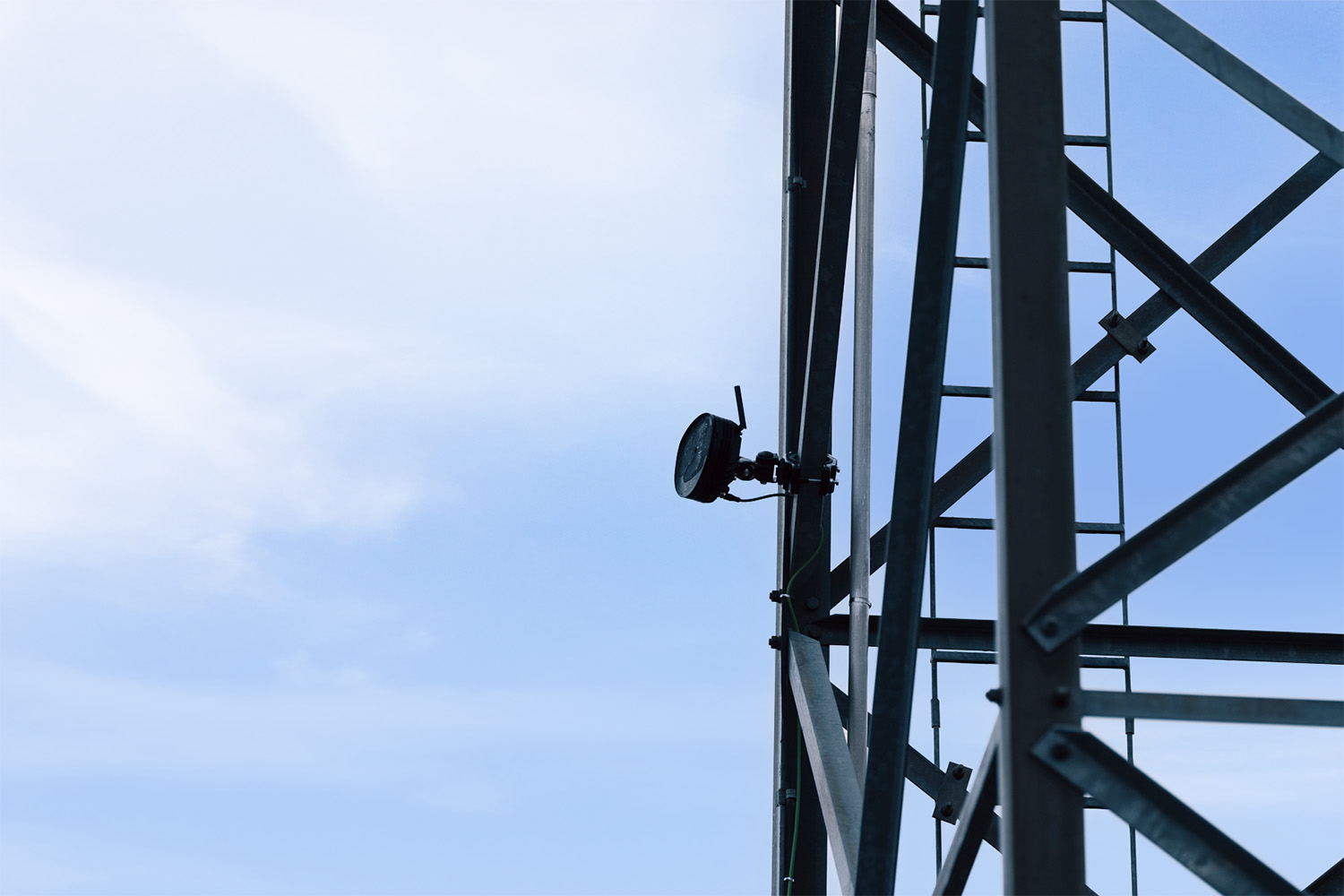

Product showcase image

仕様

Highlighted
音響測定 124 low-noise MEMS microphones, real-time sound visualization
重大度評価 Automatic AI-based severity assessment including recommended actions
距離 From 0.3 m (1.0 ft) up to 200 m (656 ft)
イメージングとレンズ
デジタルカメラ 12 MP Color
ビデオフレームレート Streaming: 15 fps;
Snapshots: 30 fps
ビデオ画像解像度 960 × 540 streaming;
16:9 aspect ratio
視野角［FOV］ 75° diagonal
測定解析
Able to Quantify Surface or Internal Discharge, Positive and Negative Corona, Negative Corona, Floating Discharge
Detection Threshold 20 kHz: -19.5 dB;
35 kHz: -11.2 dB;
50 kHz: -9.8 dB;
80 kHz: 12.2 dB;
100 kHz: 22.8 dB
帯域幅 2 kHz to 130 kHz
距離 From 0.3 m (1.0 ft) up to 200 m (656 ft)
重大度評価 Automatic AI-based severity assessment including recommended actions
音響測定 124 low-noise MEMS microphones, real-time sound visualization

資料とサポート

FAQ

FLIR Si2a-PD よくある質問

ダウンロード

Value Sheets

Flir_Si2a-PD_sales_sheet_portrait_26-0080-INS_A4-FLIR_InDesign-ja-JP-hd

ダウンロード

Datasheet

FLIR Si2a-PD データシート

ダウンロード

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
