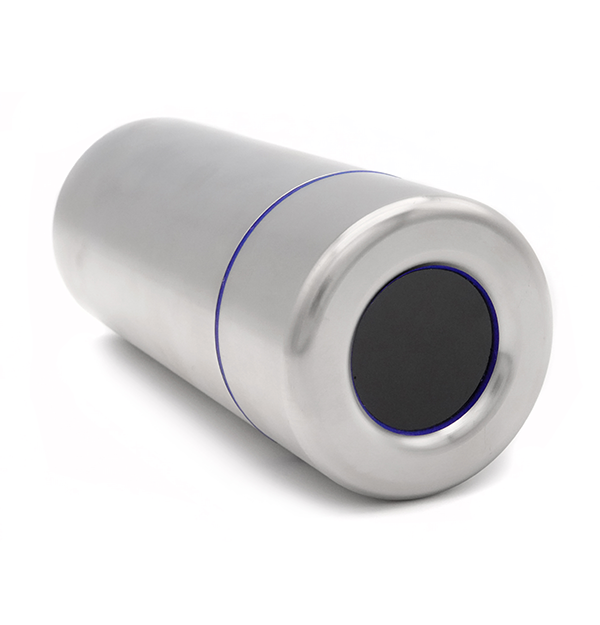

Axx IP69k Housing (T912302)

Flir A40/A50/A70モデル用の洗い流し/食品グレードエンクロージャー

This stainless steel, IP69k-rated protective housing is specifically designed for Flir A40/A50/A70 (Axx) thermal cameras. The housing is designed in accordance with EHEDG standards. The enclosure is made of A316L electropolished to Ra <0.8 µm. Camera accuracy within the protective housing remains within standard specifications due to Flir's proprietary radiometric formulas.

Note: the germanium window blocks the visual camera. The germanium employed is a crystalline material and not certified for use in proximity to food stuff. For use in food processes it is recommended to perform an application specific risk analysis according to local regulations and guidelines.

サーモグラフィ技術が最も必要とされる環境向けに設計

AxxシリーズまたはAxxxシリーズのカメラは、通常であれば過酷すぎて設置が考えられないような様々な環境下でも、安心して導入いただけます。

食品&飲料

高圧・高温洗浄にも耐えるステンレス鋼を採用。EHEDGに準拠した衛生設計の取り付け金具と組み合わせて設置できます。

IP69K   ·   EHEDG設計   ·   FDA認証シール   ·   316L

金属&重工業

積層式冷却を備えたIP67ハウジングにより、炉、窯、高温プロセスの近くでもカメラの稼働を維持します。

状況モニタリング

密閉保護による構造と日よけにより、季節を問わず、屋外に常設の監視拠点を設けられます。

異常発熱検知

粉塵の多い廃棄物処理施設、リサイクル施設、保管場所でも、カメラを損傷させることなく継続的な検知が可能です。

カメラを保護することは、プログラムを保護することです。それは、稼働時間、データの連続性、そして導入のために費やした費用を守ることにつながります。

仕様

イメージングとレンズ
互換カメラ FLIR A50/A70
色 シルバー
環境と認定
マウント 1x サイド、3x m6、cc 25 mm、奥行き 5 mm
保護 IP69K
一般仕様
サイズ[L×D] 188.6 × 80.0 mm(7.43 × 3.15インチ)
材質 ステンレスA316L
重量 3.45 kg(7.61ポンド)

アクセサリー

資料とサポート

Datasheet

FLIR Axx IP67/IP69k ハウジング データシート

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
