VS80 IRサーマルカメラプローブ (VS80CIR-21)

VS80 IR サーマルカメラプローブ、19mm × 1m長

FLIR×VS80高性能ビデオスコープ用160
120サーマルカメラプローブ VS80IR-21は、産業用ギアボックス、航空機エンジン、建物の屋根裏、壁の空洞、クロールスペースなど、アクセスが困難なエリアでのサーモグラフィ検査用の汎用サーマルカメラプローブです。

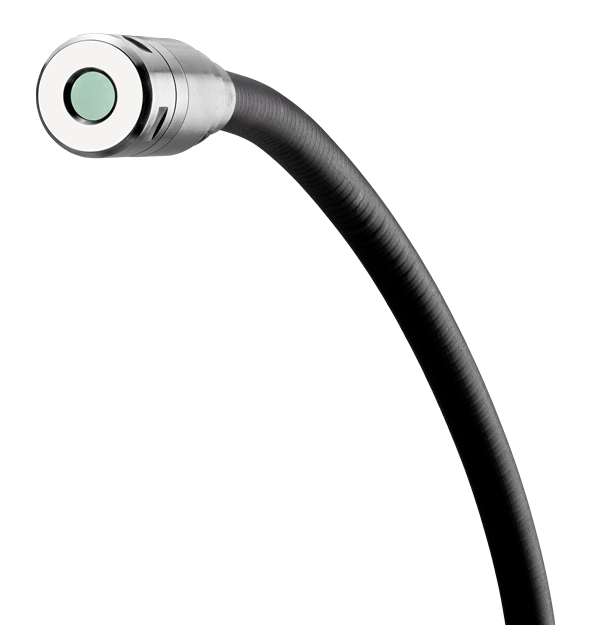

Product showcase image

仕様

イメージングとレンズ
カメラ長さ範囲 15cm以上
カラーパレット 鉄、レインボー、グレースケール、アラーム下、アラーム上
フレームレート 8.7Hz
画像解像度 160 × 120 (19,200 ピクセル)の熱画像解像度
直径 19mm
被写界深度 10mm~無限
視野角[FOV] 71°
測定解析
スポットメーター 測定なし、センタースポット、ホットスポット、コールドスポット
対象物温度範囲 -10°C~400°C
環境と認定
使用温度 -10℃~60℃
保証 3年間
認証 CE、UKCA、RCM
一般仕様
プローブ長さ 1m

資料とサポート

User Manual

FLIR VS80 カメラプローブ ユーザーマニュアル
