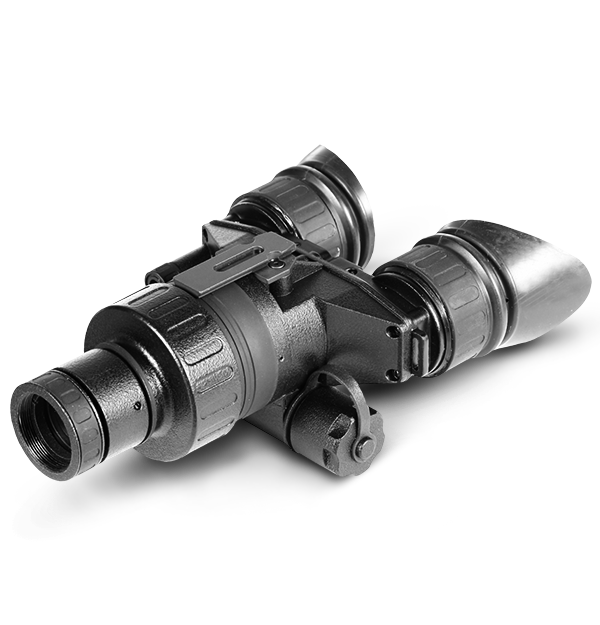

Nyx-7
Night Vision Goggles
The FLIR Nyx-7 bi-ocular goggle system offers clear and bright night vision in minimal light conditions. High-grade optics, intuitive electronics, and Gen 2+ image intensifier tubes offer reliable vision while head or helmet mounting options allow exceptional hands-free use. Available 3x or 5x magnification lenses and attachable high-powered IR illuminator add mid- to long-range viewing capability.
Reliable Vision in a Customizable System
Built-in IR illuminator and ruggedized weather-resistant housing maintain imaging performance in difficult conditions
Head and helmet mounting options, external illuminator, and available magnified lenses enhance user-customization.
Automatic brightness control and 60-hour battery life offer reliable and long-lasting night vision.
사양
| 센서 및 광학 기기 | |
|---|---|
| IIT 생성 | Gen 2+ SD (Standard Definition) |
| 광음극 유형 | Multi-Alkali |
| 눈동자 거리 [mm] | 16 mm |
| 디옵터 조정 | ±5 diopter |
| 렌즈 시스템 | F/1.2; 24 mm |
| 배율 | 1x standard (3x, 5x optional) |
| 섬광_차단 | Yes |
| 시야각 (FOV) | 40° |
| 자동 밝기 제어 | Yes |
| 적외선 조명기 | Yes |
| 초점 범위 | 0.25 m to Infinity |
| 출사동 직경 [mm] | 14 mm |
| 해상도 | 45-51 lp/mm |
| 환경 및 승인 | |
|---|---|
| 보관 온도 | -50°C to +70°C (-58°F to +158°F) |
| 작동 온도 | -40°C to +50°C (-40°F to +122°F) |
| 전원 | |
|---|---|
| 배터리 사용 시간 | Up to 60 hours |
| 배터리 잔량 부족 표시등 | Yes (In FOV) |
| 자동 전원 차단 | Yes |
| 전원공급장치 | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| 파일 저장 및 통신 | |
|---|---|
| 원격 조정 | - |
| UI-UX | |
|---|---|
| 레티클 색상 | - |
| 수동 게인 (Gain) 제어 | No |
| 적외선 표시등 | Yes (In FOV) |
| 시스템 개요 | |
|---|---|
| 레일 위 스코프 축 높이 | - |
| 레티클 유형 | - |
| 보증 | 2 Years |
| 편류_엘리베이션 조정 | - |
| 물리적 특성 | |
|---|---|
| 삼각대 마운트 | - |
| 제품 무게 | 0.45 kg (0.9 lbs) |
| 크기(L x W x H) | 150 × 102 × 70 mm (5.9 × 4 × 2.8 in) |
| 액세서리 | |
|---|---|
| 옵션형 액세서리 | ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37 , MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Lens Kit: Lens #22 with Adapter #23, Helmet Mount #183 (Shroud), Adapter #59, 5x Afocal Lens with Adapter #23, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Mil-Standard Hard Shipping/Storage Case #101, Helmet Mount #4 |
| 포함 액세서리 | One Lithium Battery CR123A, Soft carrying Case, Instruction Manual with Warranty Card, Goggle Kit #2, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Packing Box |
