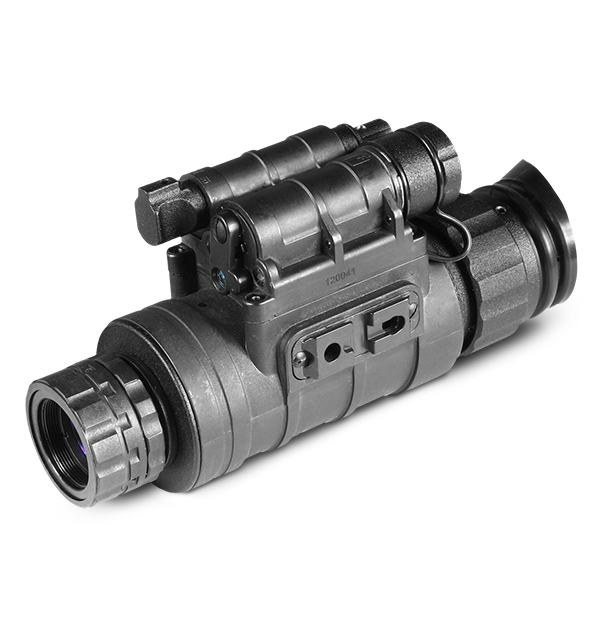

FLIR Sirius
Night Vision Monocular
The FLIR Sirius night vision monocular offers excellent Gen2+ performance and numerous high-tech features. With manual gain control, built-in IR illuminator, and bright-light shutoff, the Sirius serves the needs of both recreational hunters and law enforcement professionals. Flexible mounting options and external accessories increase device capability while a tough composite housing stands up to wear and tear.
Affordable Full-Featured Performance
Head, helmet, and weapon mounting options improve mission capability.
Manual gain control, onboard IR illuminator, and bright light shutdown enhance vision and protect intensifier tubes.
Available magnifying lenses and extra long-range IR illuminator enhance image clarity over long distances.
사양
| 강조 표시됨 | |
|---|---|
| 작동 온도 | -40°C to +50°C (-40°F to +122°F) |
| 센서 및 광학 기기 | |
|---|---|
| IIT 생성 | Gen 2+ ID (Improved Definition) MG |
| 광음극 유형 | Multi-Alkali |
| 눈동자 거리 [mm] | 21.5 mm |
| 디옵터 조정 | ±5 diopter |
| 렌즈 시스템 | F/1.2; 24 mm |
| 배율 | 1x standard (3x, 5x optional) |
| 섬광_차단 | Yes |
| 시야각 (FOV) | 40° |
| 자동 밝기 제어 | Yes |
| 적외선 조명기 | Yes (built-in with pivotal flood lens) |
| 초점 범위 | 0.25 m to Infinity |
| 출사동 직경 [mm] | 10 mm |
| 해상도 | 47-54 lp/mm |
| 환경 및 승인 | |
|---|---|
| 보관 온도 | -50°C to +70°C (-58°F to +158°F) |
| 작동 온도 | -40°C to +50°C (-40°F to +122°F) |
| 전원 | |
|---|---|
| 배터리 사용 시간 | Up to 60 hours |
| 배터리 잔량 부족 표시등 | Yes (In FOV) |
| 자동 전원 차단 | Yes |
| 전원공급장치 | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| 파일 저장 및 통신 | |
|---|---|
| 원격 조정 | - |
| UI-UX | |
|---|---|
| 레티클 색상 | - |
| 수동 게인 (Gain) 제어 | Yes |
| 적외선 표시등 | Yes (In FOV) |
| 시스템 개요 | |
|---|---|
| 레일 위 스코프 축 높이 | - |
| 레티클 유형 | - |
| 보증 | 2 Years |
| 편류_엘리베이션 조정 | - |
| 물리적 특성 | |
|---|---|
| 삼각대 마운트 | - |
| 제품 무게 | 0.46 kg (1.0 lbs) |
| 크기(L x W x H) | 182× 56 × 79 mm (7.2 × 2.2 × 3.1 in) |
| 액세서리 | |
|---|---|
| 옵션형 액세서리 | Swing Arm #172, AIM PRO - Advanced Integrated Mount Pro, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 7x Lens # 17, Helmet Mount #183 (Shroud), Tactical Goggle Kit - Wilcox L4 G24 and 3 Hole Shroud Crye Precision Nightcap and Swing Arm #172, 5x Afocal Lens with Adapter #23, 3x Afocal Lens Kit: Lens #22 with Adapter #23, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, AIM Pro-L - Advanced Integrated Mount Pro, Mil-Standard Hard Shipping/Storage Case #101, Swing Arm #37, Goggle Kit #2, QRM - Quick Release Picatinny Mount Adapter #26/#142, Universal Camera Adapter #45, Extended Rail Adapter #85, Helmet Mount #4 |
| 포함 액세서리 | Instruction Manual with Warranty Card, Soft carrying Case, Packing Box, Battery, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue |
