단종

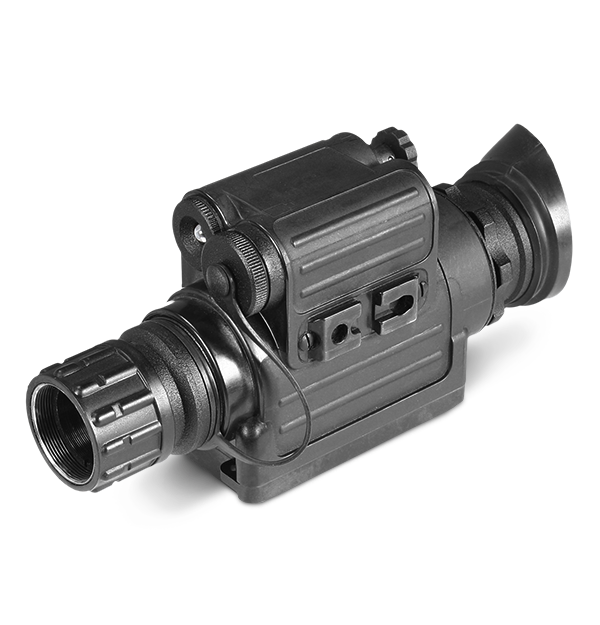

FLIR Spark
Night Vision Monocular
The FLIR Spark is a compact night vision monocular for enhancing awareness in minimal light conditions. A rugged composite housing and built-in IR illuminator allow Spark to capture sharp imagery in challenging weather conditions or complete darkness. Optional 3x and 5x optical zoom lenses and detachable high-power IR illuminator are available for long-range wildlife viewing.
Classic, Compact Night Vision
Rugged CORE intensifier tube and onboard IR illuminator allow continuous surveillance in tough conditions.
Head, helmet, and weapon mounting options allow simple handsfree operation.
Detachable optical magnification lenses and XLR IR illuminator boost long-range performance.
사양
| 강조 표시됨 | |
|---|---|
| 작동 온도 | -40°C to +50°C (-40°F to +122°F) |
| 센서 및 광학 기기 | |
|---|---|
| IIT 생성 | CORE |
| 광음극 유형 | N/A |
| 눈동자 거리 [mm] | 20 mm |
| 디옵터 조정 | ±5 diopter |
| 렌즈 시스템 | F/1.7; 35 mm |
| 배율 | 1x standard (3x, 5x optional) |
| 섬광_차단 | No |
| 시야각 (FOV) | 35° |
| 자동 밝기 제어 | No |
| 적외선 조명기 | Yes |
| 초점 범위 | 0.25 m to Infinity |
| 출사동 직경 [mm] | 8 mm |
| 해상도 | 60-70 lp/mm |
| 환경 및 승인 | |
|---|---|
| 보관 온도 | -50°C to +70°C (-58°F to +158°F) |
| 작동 온도 | -40°C to +50°C (-40°F to +122°F) |
| 전원 | |
|---|---|
| 배터리 사용 시간 | Up to 40 hours |
| 자동 전원 차단 | No |
| 전원공급장치 | CR123 Lithium 3V (1) or CR123 type rechargeable batteries with voltage 3.2V (1) |
| 파일 저장 및 통신 | |
|---|---|
| 원격 조정 | - |
| UI-UX | |
|---|---|
| 레티클 색상 | - |
| 수동 게인 (Gain) 제어 | No |
| 적외선 표시등 | Yes (Led) |
| 시스템 개요 | |
|---|---|
| 레일 위 스코프 축 높이 | - |
| 레티클 유형 | - |
| 보증 | 2 Years |
| 편류_엘리베이션 조정 | - |
| 물리적 특성 | |
|---|---|
| 삼각대 마운트 | - |
| 제품 무게 | 0.37 kg (0.8 lbs) |
| 크기(L x W x H) | 181× 49 × 82 mm (7.1 × 1.9 × 3.2 in) |
| 액세서리 | |
|---|---|
| 옵션형 액세서리 | PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37, Swing Arm #172, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, AIM PRO - Advanced Integrated Mount Pro, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, Helmet Mount #170 (Shroud), 5x Afocal Lens with Adapter #23, 3x Afocal Lens Kit: Lens #22 with Adapter #23, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM Pro-L - Advanced Integrated Mount Pro, Goggle Kit #1, Mil-Standard Hard Shipping/Storage Case #101, Swing Arm #37, Helmet Mount #3, Universal Camera Adapter #45, QRM - Quick Release Picatinny Mount Adapter #26/#142, Extended Rail Adapter #85 |
| 포함 액세서리 | Soft carrying Case, One Lithium Battery CR123A, Packing Box, Lens Tissue, Instruction Manual with Warranty Card |
액세서리
리소스 및 지원
Datasheet
Spark Datasheet
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
