Discontinued

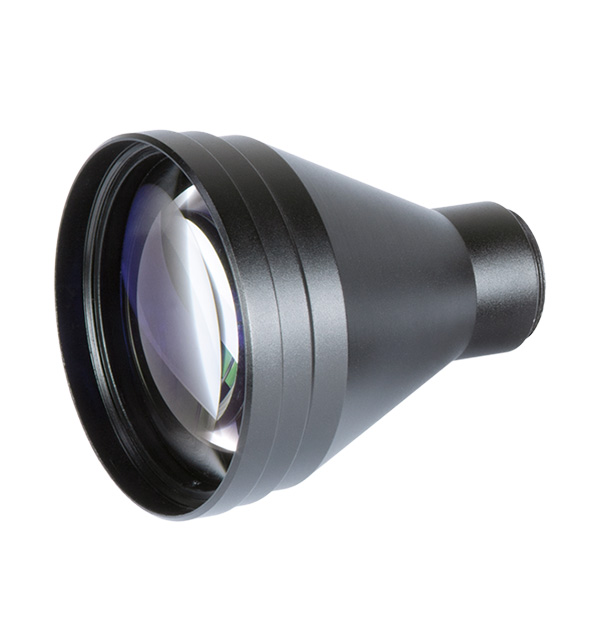

5x Afocal Lens (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro)
Afocal lenses add magnified, long-range performance to standard night vision devices. Quickly installed onto the front of an objective lens, the 5x Afocal Magnifier Lens converts night vision monoculars and goggles into long-range optics.
Especificaciones
| Sensor y óptica | |
|---|---|
| Field of View [angle] | ≥ 7°30' |
| Magnification | 5x |
| Resolution | ≤3.65" |
| Características medioambientales y aprobaciones | |
|---|---|
| Storage Temperature | -57° to +65°C (-70° to 149°F) |
| Waterproof | 1m / 30 min |
| Almacenamiento de archivos y comunicación | |
|---|---|
| Connecting Thread | M28 x 0.75 |
| Descripción general del sistema | |
|---|---|
| Light Transmission [400 to 900 nm] | ≥ 90% |
| Características físicas | |
|---|---|
| Dimensions [without caps] | Ø75.5 х 85mm |
| Weight | 325 g (0.71 lbs) |
Resources & Support
Datasheet
5x Afocal Lens Datasheet
