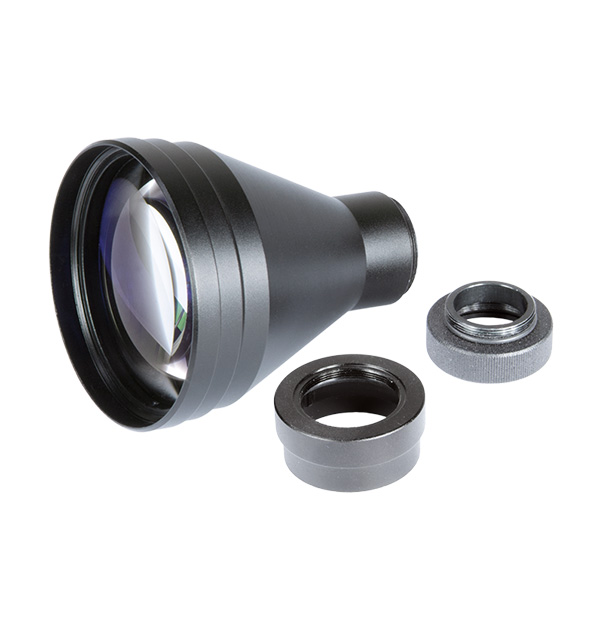

5x Afocal Lens with Adapter #24/#25 (PVS-7, PVS-14)
Afocal lenses add magnified, long-range performance to standard night vision devices. Quickly installed onto the front of an objective lens, the 5x Afocal Magnifier Lens converts night vision monoculars and goggles into long-range optics. Standard military devices, such as the PVS-7 or PVS-14, require Afocal Adapters #24 or #25 for a secure connection between afocal and objective lenses. The adapters are not compatible with external sacrificial windows.
Especificaciones
| Sensor y óptica | |
|---|---|
| Aumento | 5x |
| Campo de visión (ángulo) | ≥ 7°30' |
| Resolución | ≤3.65" |
| Características medioambientales y aprobaciones | |
|---|---|
| Impermeable | 1m / 30 min |
| Temperatura de almacenamiento | -57°C to +65°C (-70°F to 149°F) |
| Descripción general del sistema | |
|---|---|
| Transmisión de luz (de 400 a 900 nm) | ≥ 90% |
| Características físicas | |
|---|---|
| Dimensiones (sin tapas) | Ø75.5 х 85mm |
| Peso | 325 g (0.71 lbs) |
