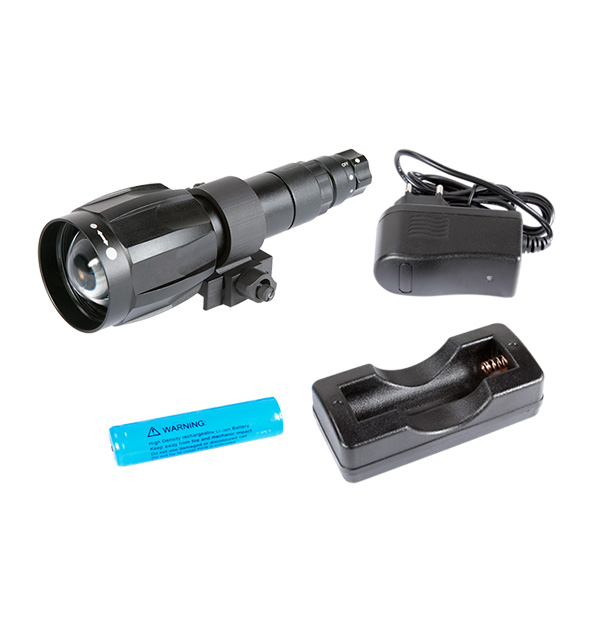

IR850-XLR Detachable LED Extra Long Range Infrared Illuminator
Night vision devices rely on small amounts of ambient light to capture clear imagery. FLIR’s Extra Long Range Infrared Illuminator uses near IR light invisible to the naked eye to covertly illuminate subjects in complete darkness, allowing night vision optics to produce a better image. The powerful IR850-XLR model offers beam angle adjustment and variable power control. Included rechargeable battery can operate up to 10 hours while an optional Afocal Doubler increases long-range performance.
Especificaciones
| Sensor y óptica | |
|---|---|
| Longitud de onda máxima | 850 nm |
| Ángulo de divergencia | 4° to 35° |
| Características medioambientales y aprobaciones | |
|---|---|
| Clasificación medioambiental | Water and fog Resistant |
| Alimentación | |
|---|---|
| Alimentación | 1000 mW |
| Duración de las baterías a 20 °C (68 °F) | up to 10 hours (1/4 Power), up to 8 hours (1/2 Power), up to 6 hours (3/4 Power), up to 2.5 hour (Full Power) |
| Fuente de alimentación | One 18650 (3.7v ) Rechargeable Battery |
| Descripción general del sistema | |
|---|---|
| Dispositivos de visión nocturna compatibles | Gen 1, CORE, Gen2, Gen 3, Digital |
| Tipo de emisor de IR | LED |
| Características físicas | |
|---|---|
| Dimensiones (abrazadera de montaje no incluida) | 150 x 46 x 46 mm (5.9 x 1.8 x 1.8 in) |
| Peso | 0.21 kg (0.46 ibs), without mount and battery |
