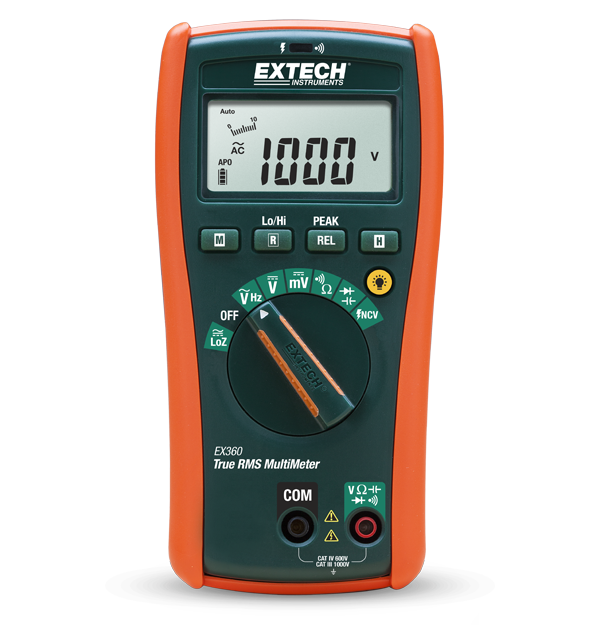

Extech EX360
8 Function True RMS Multimeter
The Extech EX360 is a compact electrical true RMS multimeter with a built in non contact voltage detector. It features highly accurate true RMS measurements, LoZ for the prevention of false readings caused by ghost voltages, .5% basic accuracy, a 1000 V AC/DC volt range, resistance up to 40 MΩ, continuity beeper with visual alert, smart data hold, peak hold, auto power off with disable, relative mode for capacitance zero, and offset adjustment. Additionally, the EX360 excels in frequency and capacitance measurement. Complete with test leads, 9 V battery, holster with tilt stand and built-in magnet.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 0.1mV to 1000V |
| DC電圧 | 0.1mV to 1000V |
| DC電圧の基本精度 | 0.5% |
| ダイオード試験 | Yes |
| 周波数 | 0.01Hz to 100kHz |
| 導通 | Yes |
| 抵抗 | 0.1Ω to 40MΩ |
| 真の実効値 | Yes |
| 電気容量 | 1nF to 10mF |
| 非接触電圧（NCV）検出器 | Yes |
| 追加の詳細 | |
|---|---|
| 保証 | 3 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIV - 600V |
| 寸法 | 6.5 × 3.2 × 1.7" (164 × 82 × 44mm) |
| 認証 | CE, UL, NIST |
| 重量 | 5.9oz (450g) |
