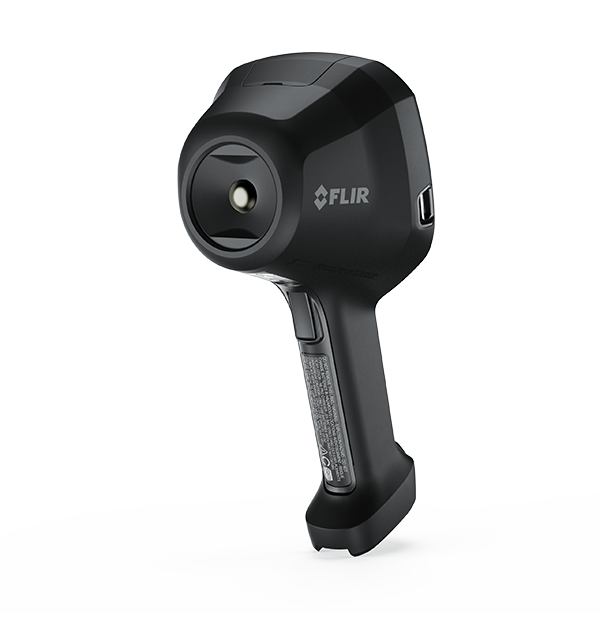

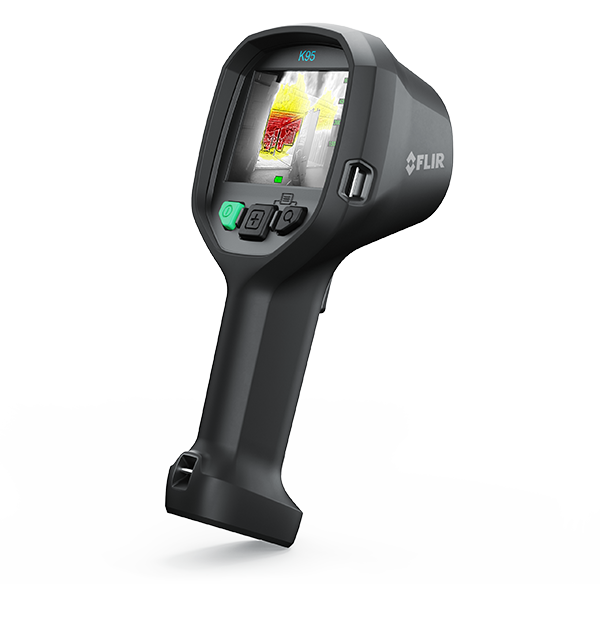

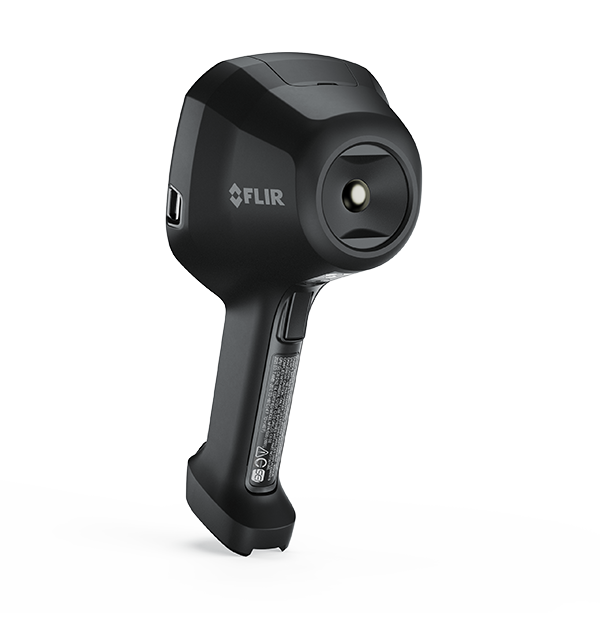

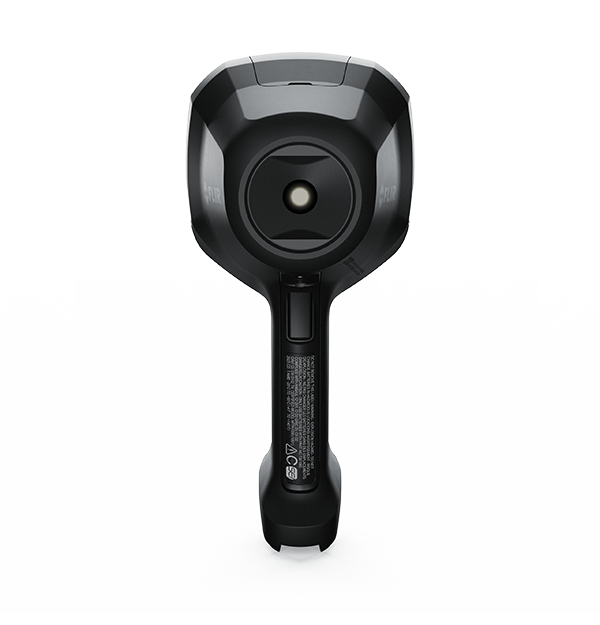

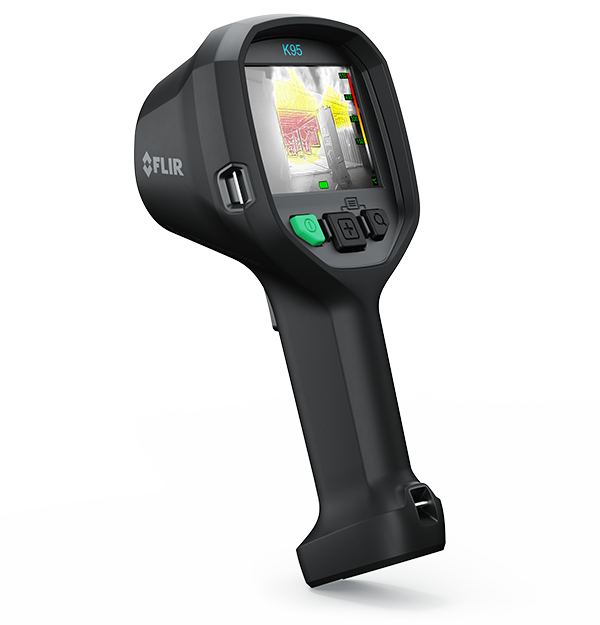

K95
Firefighting TIC, 95° Wide-Angle Field of View, 640 × 480, App-Enabled
The Flir K95 is the next generation of the K-Series, designed to give firefighters a clearer, more complete view before, during, and after every incident. Combining 640 × 480 thermal resolution with an expansive 95° field of view, the K95 reveals more of the scene in every glance. By reducing the need for constant scanning and panning, it helps crews understand room layouts, identify movement paths, assess fire development, and make faster, better-informed decisions during search and rescue and fire attack.
Its single-gain solution provides continuous, freeze-free imaging without losing critical scene information. From overheated doors and hidden fire spread to floor openings, the K95 helps firefighters recognize changing conditions sooner, attack fires more strategically, and manoeuvre through smoke-filled environments with greater confidence. Wireless connectivity to the Flir Responder App also simplifies camera configuration, enables live video streaming for training, and supports mission data sharing after the call.
Especificaciones
| Resaltado | |
|---|---|
| Resolución de IR | 640 × 480 |
| Pantalla | 4" LCD, 640 × 480, 60 Hz, backlit |
| Rango de temperatura del objeto | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Modos de imagen | Basic, Search, Detection, High Heat, White Hot |
| Generación de imágenes y óptica | |
|---|---|
| Campo de visión (FOV) | 95° × 74° |
| Frecuencia de la imagen | 30 Hz |
| Grabación de vídeo IR no radiométrico | MPEG4 to internal flash memory |
| Modos de imagen | Basic, Search, Detection, High Heat, White Hot |
| Optimización del contraste | Flexible Scene Enhancement (FSX®) |
| Paso | 12 µm |
| Rango espectral | 7.5µm to 14 µm |
| Resolución de IR | 640 × 480 |
| Sensibilidad térmica/NETD | <70 mK |
| Tipo de detector | Focal plane array (FPA), uncooled microbolometer |
| Transmisión de vídeo IR no radiométrico | Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app |
| Zoom | 2x digital zoom |
| Características medioambientales y certificaciones | |
|---|---|
| Campos magnéticos | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Caída | 2 m (6.6 ft) on concrete floor (IEC 60068-2-31) |
| EMC | EN 301 489-1 RED
EN 301 489-17 EN 55032 Class B (Emission) EN 55035 (Immunity) EN 61000-6-2 Immunity according to Industrial EN 61000-6-3 380-480MHz EN 61000-6-3 800-960MHz EN 60945 Maritime equipment FCC 47 CFR part 15 B, cla |
| Espectro de radio | ETSI EN 300 328
ETSI EN 301 893 FCC 47 CFR part 15 RSS-247 |
| Golpes | 25 g (IEC 60068-2-27) |
| Humedad (operativa y de almacenamiento) | IEC 60068-2-30/24 h 95 |
| Humedad relativa | 95% relative humidity 25°C to 40°C
(77°F to 104°F) non-condensing |
| Protección | IP67 (IEC 60529) |
| Rango de temperatura de almacenamiento | -40°C to 85°C (-40°F to 185°F) |
| Rango de temperatura operativa | -20°C to 60°C (-4°F to 140°F)
150°C (302°F): 15 min 260°C (500°F): 5 min |
| Vibración | 2 g (IEC 60068-2-6) |
| Alimentación | |
|---|---|
| Capacidad de la batería | 5.8 Ah, at 20°C to 25°C (68°F to 77°F) |
| Gestión energética | For documents like MSDS and UN38.3 test reports/summaries, see: https://support.flir.com/resources/msds |
| Seguridad [fuente de alimentación] | CE/EN/UL/CSA/PSE 60950-1 IEC 62368 |
| Sistema de carga | Desktop 2-bay charger
Optional in-truck charger |
| Temperatura de carga | 0°C to 45°C (32°F to 113°F) |
| Tiempo de carga | ≤3 h to capacity enough for 3 h operation |
| Tiempo operativo de la batería | Approx. 4 hours @ 25°C (77°F) ambient temperature and typical use |
| Tipo de batería | Li-Ion |
| Voltaje de la batería | 3.7 V |
| Medición y análisis | |
|---|---|
| Rango de temperatura del objeto | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| General | |
|---|---|
| Contenido del paquete | Infrared camera
Battery (2 ea.) Battery charger Carabiner strap Power supply Printed documentation Retractable lanyard, 16 N (58 oz) USB cable |
| Interfaz de usuario | |
|---|---|
| Pantalla | 4" LCD, 640 × 480, 60 Hz, backlit |
| Comunicación y almacenamiento de datos | |
|---|---|
| Almacenamiento de imágenes | Camera and Flir Responder app |
| Bluetooth | Bluetooth v. 5.0 EDR + BLE *PAN |
| Capacidad de almacenamiento de imágenes | 200 files in total (N.B. The total number of files varies dependent on the number of saved video clips) |
| Formatos de archivo | Standard JPEG |
| Interfaz | Update via OTA (Wi-Fi using the Flir Responder app)
Legacy support for updates from PC and data transfer to and from PC |
| Soporte de almacenamiento | Internal flash memory |
| USB | USB-C |
| Wifi | IEEE 802.11 b/g/n (2.4 GHz) |
Accesorios
Recursos y asistencia
Datasheet
Ficha técnica del FLIR K95
Datasheet
FLIR K95 Datasheet
Warranty
FLIR Fire Service 2-5-10 Global Limited Warranty
Certification
ISO 9001-2015 FLIR Sweden
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
