Carcasa IP67 para la serie Axx (T912301)
Carcasa protectora para los modelos Flir A40/A50/A70
3 500,00 € ex. VAT

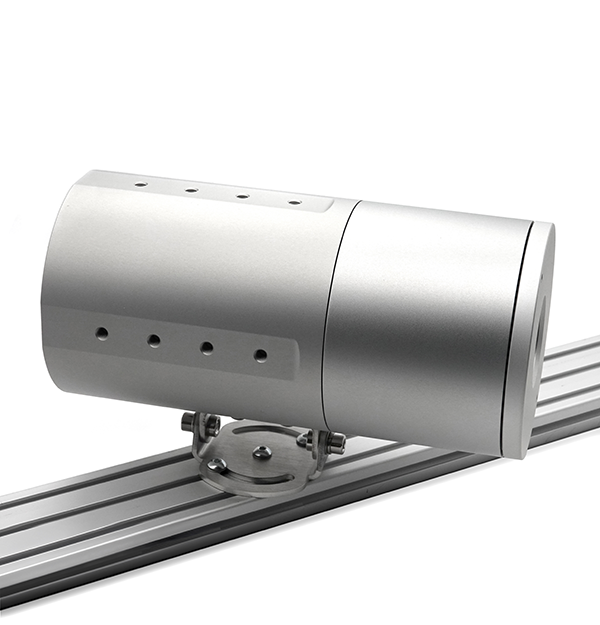

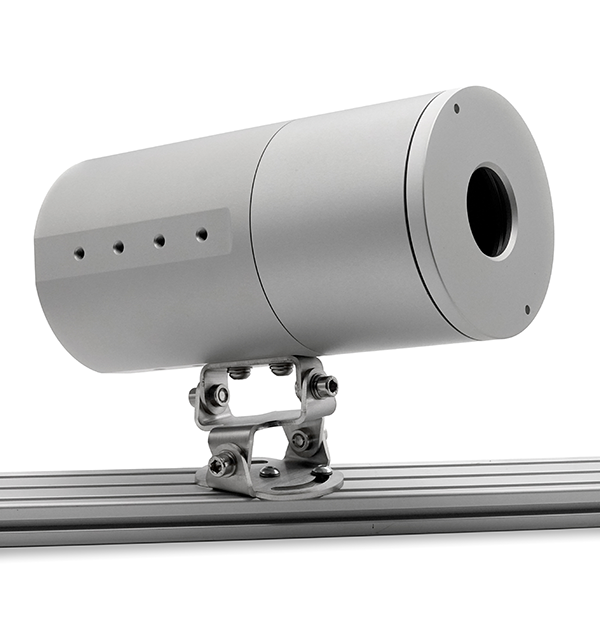

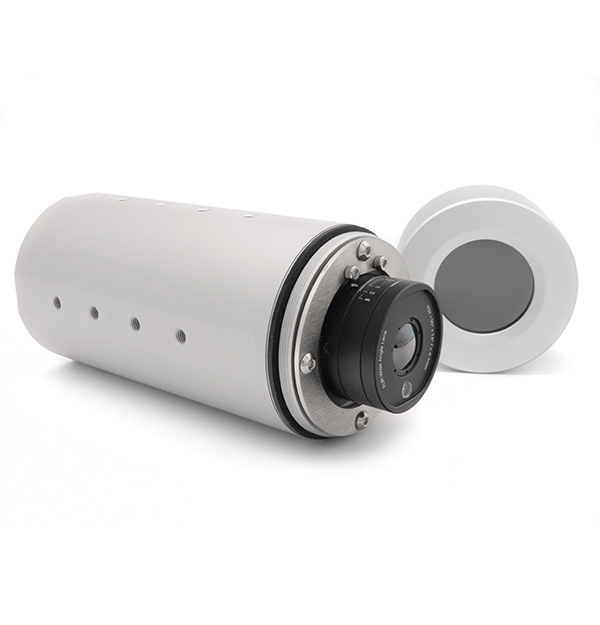

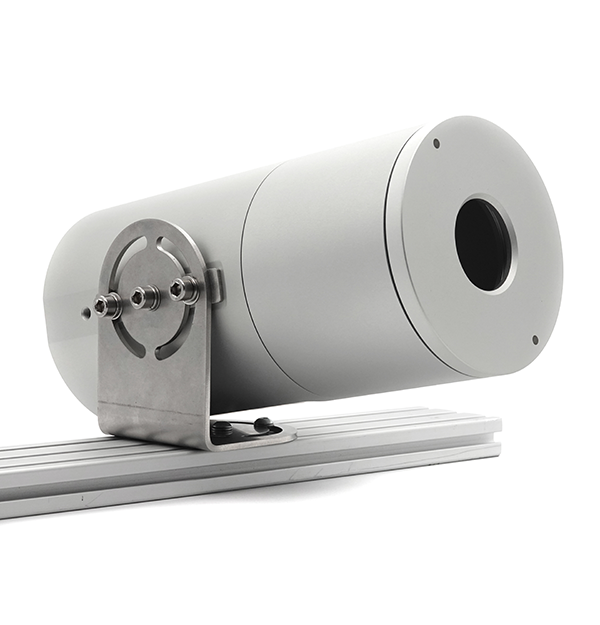

Esta carcasa protectora de aluminio con IP67-rated está diseñada específicamente para cámaras térmicas Flir A50/A70. La precisión de la cámara dentro de la carcasa protectora sigue dentro de las especificaciones estándar debido a las fórmulas radiométricas patentadas de Flir. Los accesorios compatibles incluyen un bloque de refrigeración/chaqueta, protector solar y numerosas opciones de montaje.
Nota: la ventana de chalcogenida bloquea la cámara visual.
Equivalent optics, verified
88–90% transmission across the 7–14 µm band, with radiometric accuracy unchanged. Confirmed in testing against the germanium reference window.
Stable as temperatures climb
A low thermo-optic coefficient keeps optical properties consistent—the same material class automotive thermal cameras qualify from -40°C to 85°C (-40°F to 185°F).
Hardened like before
The same AR + DLC diamond-like-carbon coating as the previous window, meeting MIL-spec abrasion, humidity, and salt-spray standards.
Supply you can plan on
Moves the window off constrained germanium supply—protecting availability and the delivery dates behind your camera order.
Accesorios
Recursos y asistencia
Datasheet
Ficha técnica de la carcasa FLIR Axx IP67/IP69k
Datasheet
FLIR Axx IP67/IP69k Housing Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
