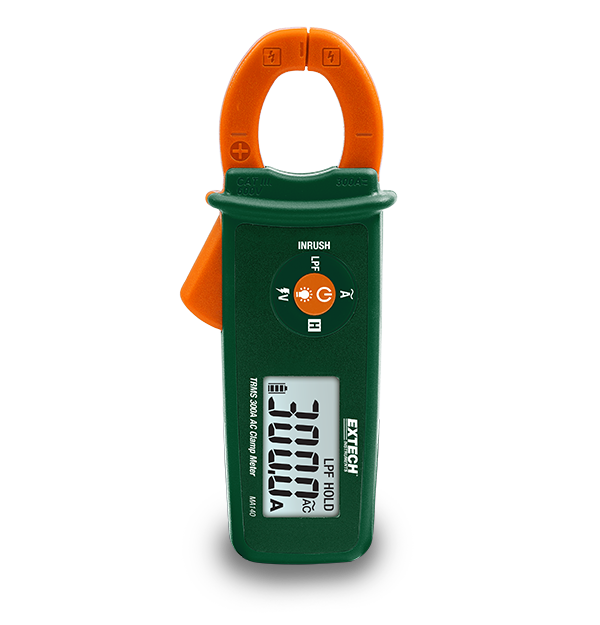

True RMS 300A AC Clamp Meter

Extech MA140

Model: MA140 Go to Product Support
product image

The Extech MA140 is a compact AC Clamp Meter with NCV detector. This clamp meter takes true RMS measurements for accurate readings of noisy, distorted, or non-sinusoidal waveforms. The MA140 can measure up to 300 A AC. Complete with carrying case and two LR44 batteries.

Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Current
60A, 300A
AC Current Basic Accuracy
±2.0%
AC Current Max Resolution
0.01A
Jaw Size
0.8" (22mm), conductors up to 300MCM
Non-Contact Voltage (NCV) Detector
80 to 600VAC
True RMS
Yes
Additional Details
Certifications
CE, UL
Dimensions
5.8 × 2.4 × 1.2" (147 × 60 × 31mm)
Power
2 × LR44 (1.5V) batteries
Safety Category
CATIII - 600V
Warranty
2 years
Weight
4.9oz (140g)
Other
Filter_Brand
Extech
