UAS Thermal Imaging Kit

DJI Mavic 2 Enterprise Dual

Go to Product Support

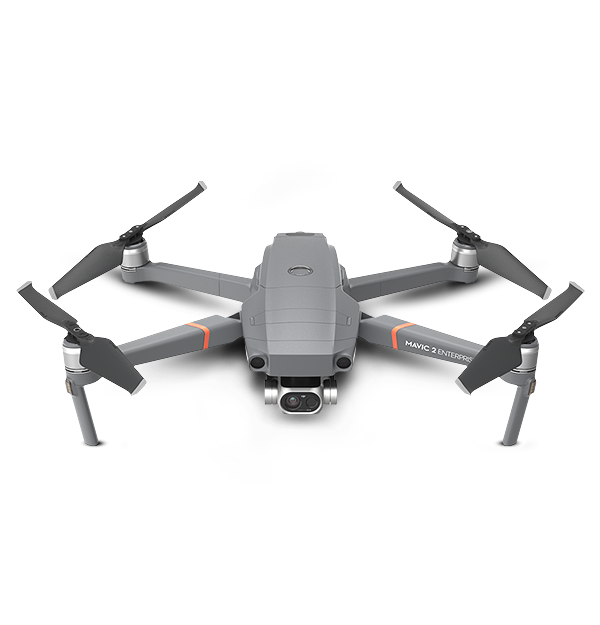

product image

Designed to empower a new generation of workers, the Mavic 2 Enterprise DUAL with thermal imaging is the ultimate expression of a tool that delivers beyond expectation to meet current workplace challenges and future demands. It combines gimbal technology, mobile app integration, and video transmission to provide reliable aerial thermal imaging to a wide range of industries.

$3,350.00
Add to Cart

An Aerial View is More Accessible than Ever Before

  • ULTRA-COMPACT DRONE & IMAGING COMBINATION

    The Mavic Dual with FLIR thermal serves as an eye in the sky for first responders and building inspectors - while using >1 ft² of space

  • SEE THE UNSEEN WITH FLIR THERMAL

    See invisible differences in heat like no one else, so you can find lost people and animals, inspect buildings for moisture intrusion, find hidden roof damage, and much more.

  • UNDERSTAND THE POWER OF YOUR DATA

    Visualize scenarios in realtime with FLIR MSX®, monitor and measure objects with the thermal spot meter, and take area measurements - all so you can make the most informed decisions.

Specifications
Overview
Scene Range [high gain]
-10°C to 140°C (14°F to 284°F)
Scene Range [low gain]
-10°C to 400°C (14°F to 752°F)
Thermal Imager
Uncooled microbolometer, 8–14 µm
Aircraft Model
DJI Mavic 2 Dual
Gimbal Mount [IR and Visual]
Fixed mount
Included Tablet Interface
NA
IR Camera
FLIR Lepton, 160 × 120
Thermal Photo/Video Formats
Photo: JPEGs Video: MP4, MOV (MPEG-4 AVC/H.264 Radiometric file save not supported)
Visual Photo/Video Formats
Photo: JPEG/DNG (Raw) Video: MP4, MOV (MPEG-4 AVC/H.264, HEVC/H.264)
Electrical & Mechanical
File Storage
Supports microSD up to 128 GB (UHS-1 Speed Grade 3 required)
RC Unit 1 included
DJI Mavic remote
Imaging & Optical
HFOV - Thermal
57°
Physical
Weight [battery included]
1.1 kg
Power
Aircraft Battery
3850 mAh, 15.4 V LiPo 4S
Thermal Imaging
Frame Rate - Thermal
9 Hz
Resolution - Thermal
160 × 120 native resolution
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
