Thermal Imaging Monocular

Prometheus

Model: TAT173MN4PROM31
Go to Product Support

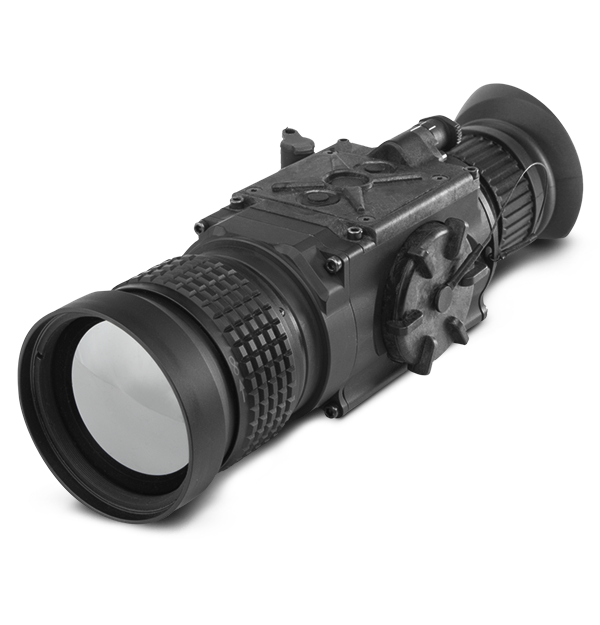

product image

The FLIR Prometheus combines a focusable 50 mm optical lens with the trusted performance of FLIR’s Tau™ 2 thermal imaging core. Designed for mid-range thermal surveillance and capable of refresh rates up to 60 Hz, the Prometheus offers dependable thermal imaging to maintain sightlines on moving objects of interest.

  • RELIABLE VISION

    Thermal imaging provides unwavering vision in complete darkness and through glaring light, smoke, and haze.

  • QUALITY OPTICS

    Prometheus is equipped with a 50 mm manual focus lens to detect humans, animals, and objects from distance.

  • CUSTOM VIEWING MODES

    The feature-packed Prometheus offers a 4x digital zoom and multiple user-controlled color palettes.

Specifications
Overview
Detector Type
336 x 256 VOx Microbolometer
Focus Range
5 m to infinity
System Overview
Lens System
50 mm; F/1.0
Optical Magnification
3x
Connections & Communications
Video Output
PAL (768×574 pixels)/ NTSC (640×480 pixels)
Imaging & Optical
Color palettes
White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM
Diopter Adjustment
Adjusts the Eyepiece Diopter
Field of View
7.8° x 5.9°
Diopter Adjustment Range
-5 to +5 dpt
Marine Imaging & Optical
Video Refresh Rate
30 Hz
Meter Data
Display
Quad-VGA (1280 x 960)
Power
Battery
Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2)
Battery Life
Up to 4 hrs. at 20C°
Presentation
Control Panel Buttons
Configures Operational Settings: •Display Brightness Control •Image Palette Control • Digital Zoom Control •On-Screen Menu Navigation
Operation Switch
On/ Off/ Standby Mode
