5x Microscope, 3.0–5.0 μm, f/4 (FPO Manual Bayonet)

Go to Product Support
product image

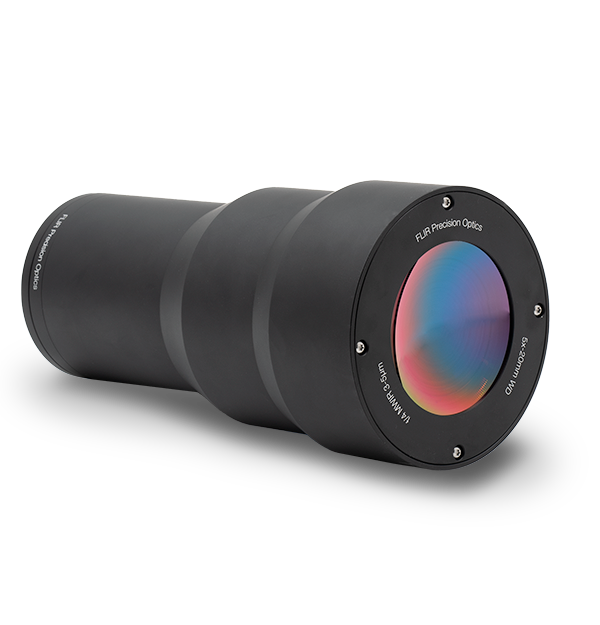

5x microscope lens for FLIR MWIR R&D/Science cameras, including A67xx MWIR, A85xx MWIR, X68xx MWIR, X69xx MWIR, and X85xx MWIR.

Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General
Average Transmission
86%
Weight
1.73 kg (3.82 lbs)
Imaging & Optical
Depth of Field
30 µm
Diameter
96 mm (3.86 in)
f-number
4
Focal Length
5x Microscope
Focus Range
20 mm
Length
196 mm (7.7 in)
Imaging & Optical
Distortion
<1.0%
Spectral Band
3.0–5.0 µm
Other
Interface
4-Tab FPO Manual Focus Bayonet
UI-UX
Focus Method
Manual
Media Gallery
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
