AID and data collection board for analog cameras

FLIR VIP-T

Go to Support Page

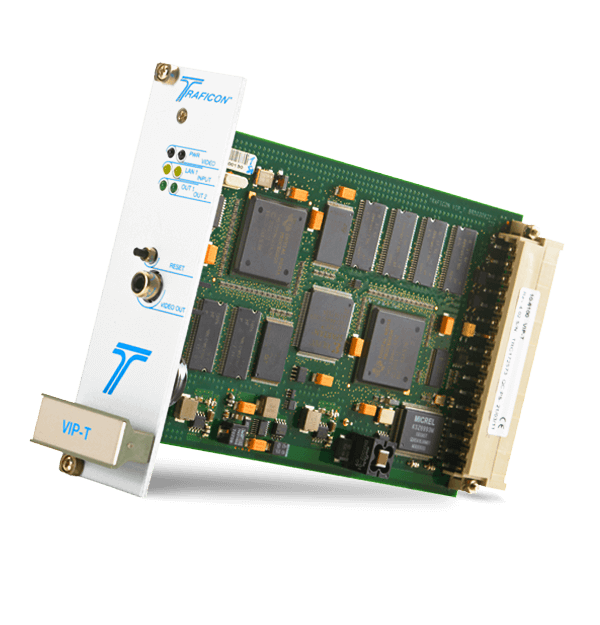

product image

The FLIR VIP-T is a multi-functional Video Image Processing module for traffic control. VIP-T boards process video input from analog cameras for automatic incident detection, data collection, recording of pre and post incident image sequences and streaming video (MPEG-4). VIP-T boards have been installed for road and tunnel projects all over the world.

Powerful Automatic Incident Detection for IP cameras

  • Automatic Incident Detection

    FLIR VIP-T alerts on a variety of events, including stopped vehicles, wrong-way drivers, queues, slow-moving vehicles, fallen objects and pedestrians.

  • Robust traffic data collection

    FLIR VIP-T collects traffic data, detects queues and emulates loops on highways and inter-urban roads.

  • Easy to install and operate

    FLIR VIP-T is a reliable, 24/7 detection solution that offers a long lifetime.

Specifications
Overview
Description
AID module for analog cameras
Boards per Rack
4 (1/2 19" rack) or 8 (19" rack)
Dimensions
130 x 41 x 190 mm
Encoding Format
MPEG-4
Maximum Streams
Max 4 unicast or multicast
MTBF
200,000 hrs
Power
4W
Multi-Streaming
Single MPEG-4
Analytics
AID
AID overlay Vehicle presence detection
Connections & Communications
Audio
No
Communication Standards
N/A
Data
No
Digital Inputs
1
Digital Outputs
2 (+ optional 8)
LAN Connector Type
10/100 Mbps RJ45
PTZ control
No
Video Input
Analog PAL / NTSC
Electrical & Mechanical
Stand_Alone Form
Box, 24V DC (+/- 15%)
Environmental & Approvals
Operating Temperature
-34° to +74C (-29° to 165°F)
Imaging & Optical
Maximum resolution
4CIF @ 30 fps

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
