Encoder with embedded AID

FLIR VIP-TX

Go to Support Page

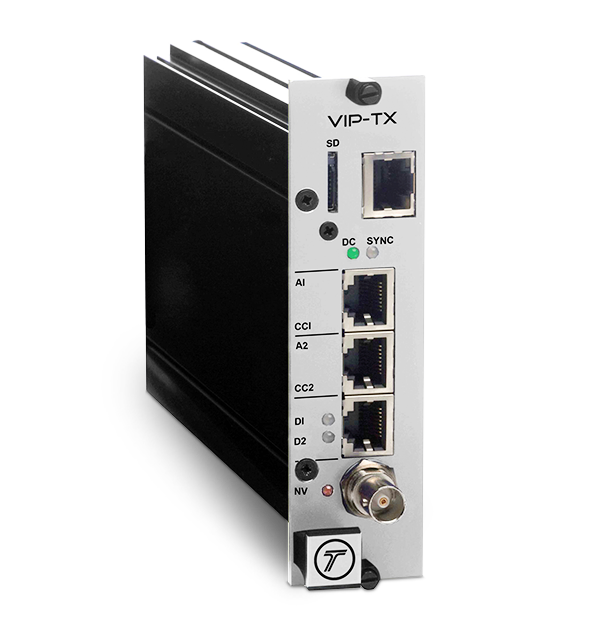

product image

FLIR VIP-TX combines field-proven incident detection capabilities with advanced video encoding and powerful processing technology in a single unit. VIP-TX boards process video input from analog cameras for automatic incident detection, data collection, recording of pre and post incident image sequences and streaming video. The versatile FLIR VIP-TX can handle 3 independent video streams in H.264, MPEG-4, MPEG-2 or MJPEG format.

Multi-codec video server with integrated AID and data collection

  • Automatic Incident Detection

    FLIR VIP-TX alerts on a variety of events, including stopped vehicles, wrong-way drivers, queues, slow-moving vehicles, fallen objects and pedestrians.

  • Robust traffic data collection

    FLIR VIP-TX collects traffic data, detects queues and emulates loops on highways and inter-urban roads.

  • Powerful video processing

    FLIR VIP-TX allows to select between different video compression algorithms, which ensures interoperability with existing applications.

Specifications
Overview
Description
Encoder with embedded AID
Boards per Rack
11 (19" rack)
Dimensions
128 x 34 x 190 mm
Encoding Format
H.264, MPEG-4, MPEG-2, MJPEG
Maximum Streams
Unicast and/or multicast, max 20
MTBF
> 200,000 hrs
Power
< 5W
Multi-Streaming
Triple streaming: 1 x H.264 (BP) + 2 x MJPEG or MPEG
Analytics
AID
AID Customizable overlay Video motion detection Image monitor (quality measurement) Tamper detection Privacy masks
Connections & Communications
Audio
2 full duplex stereo
Communication Standards
ONVIF profile S, NTCIP, SNMP
Data
RS232 + RS422/485
Digital Inputs
2
Digital Outputs
2
LAN Connector Type
10/100 Mbps RJ45 SFP for fibre or IP over coax (ECO)
PTZ control
Yes
Video Input
Analog PAL / NTSC
Electrical & Mechanical
Stand_Alone Form
Box, 11 to 19V DC
Environmental & Approvals
Operating Temperature
-40° to +74°C (-40° to +165°F)
Imaging & Optical
Maximum resolution
D1 @ 30 fps

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
