Non-Contact Phase Sequence Tester

Extech PRT200

Go to Product Support
product image

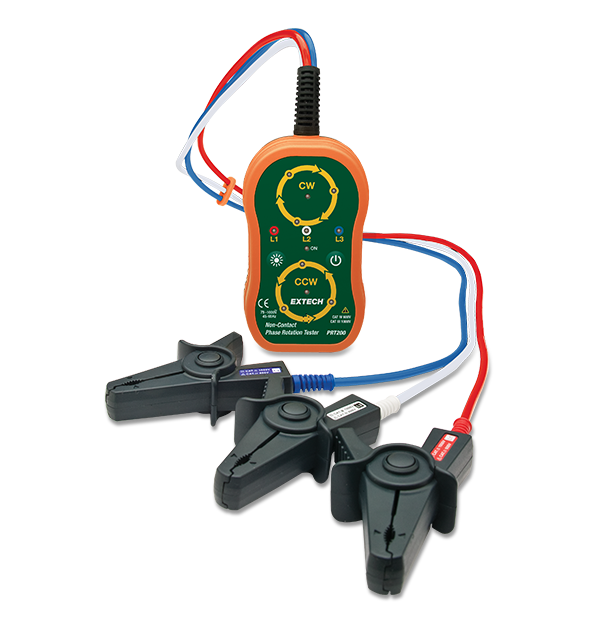

The Extech PRT200 is a non-contact phase sequence tester with a 75 to 1000 VAC input voltage and 45 to 65 Hz frequency range. This tester features LEDs that indicate whether each phase is live and that phase's orientation; a beeper sounds intermittently when correct phase is detected and continuously if phase is reversed. An adjustable Hi/Lo LED brightness switch makes it easy to take measurements in dimly lit areas or sunlight, while the CAT IV 600 Volt safety rating plus fully-insulated, wide-jaw alligator clips mean it's appropriate for industrial applications. The PRT200 comes complete with a year warranty, three built-in 30 in. test leads with large color-coded alligator clips, 4 AA batteries, and a pouch case.

$212.99

Available for purchase on credit terms. Learn More

Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales

Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Voltage
75 to 1000VAC
Frequency
45 to 65Hz
Max Conductor Size
33mm (1.3") diameter
Measurement Principle
Static induction
Additional Details
Certifications
CE
Dimensions
4.7 × 2.7 × 1.5" (118 × 69 × 38mm)
Power
4 × AA (1.5V) batteries
Safety Category
CATIV - 600V
Warranty
2 years
Weight
13oz (370g)
