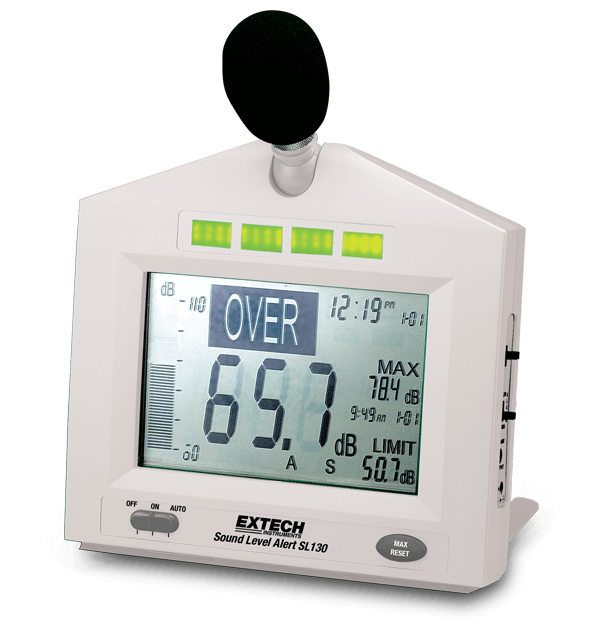

Sound Level Alert with Alarm

Extech SL130W

Model: SL130W Go to Product Support
product image

The SL130W is a sound level alert with alarm for continuous monitoring of sound levels. Ideal for industrial, hospital, auditoriums, schools and other areas where there is a need for being alerted when sound level reaches set points. Bright LEDs (red flashing or green) alert user when sound level is too high or too low - LEDs can be read from 30m (100ft). You can set the SL130 so the RED LEDs flash when the sound level is below the"LO" set point where people in the audience may not be able to hear. When the sound level is above the "LO" set point, the GREEN LEDs indicate the sound level is acceptable. You can reverse the Red and Green LEDs activation per user color preference. Wall, desk or tripod mount with optional 15ft (5m) microphone extension cable for remote monitoring. User settable high or low limit (30 to 130dB) with output to drive external relay module. Meets ANSI Type 2 and EN 60651 accuracy specs - compliant to OSHA. Complete with 100-240V AC 50/60Hz adapter and microphone wind cover. 8 x AA batteries (not included) can be used for monitoring function only without LED alert.

$283.99
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
Frequency Bandwidth
31.5 Hz to 8 kHz
Microphone
Condenser, 0.5"
Response Time
Fast: 125ms / Slow: 1s
Sound Range (dB)
30 to 80dB, 60 to 110dB, 80 to 130dB
Sound Range (dB) Max Resolution
0.1dB
Weighting
A, C
Additional Details
Certifications
CE
Dimensions
8.75 × 7.1 × 1.25" (22 × 18 × 3.2cm)
Display
4.6 x 3.125" (117x79mm) segment LCD
Power
8 × AA (1.5V) batteries / AC/DC power adaptor
Warranty
2 years
Weight
0.63 lbs (285g)
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
