Compact HD MWIR Performance Camera

FLIR A8200sc

Go to Support Page

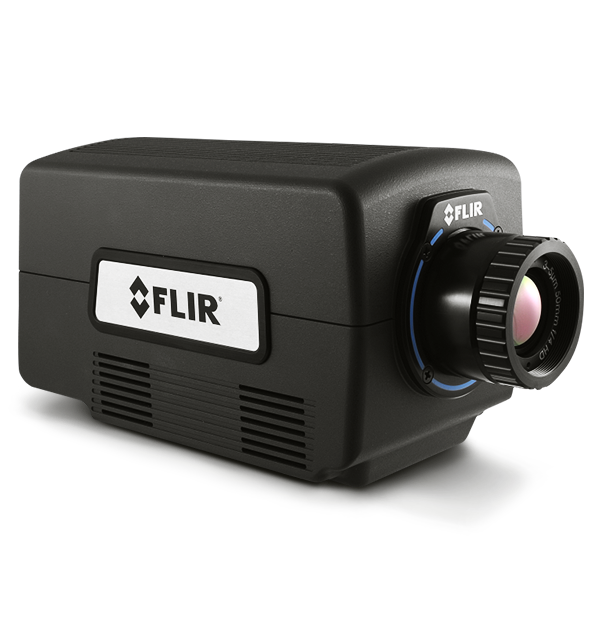

product image

The FLIR A8200sc is a compact, high sensitivity MWIR camera that produces low-noise HD thermal images. With its short exposure times and crisply detailed images, the A8200sc is the perfect choice for electronics inspection, aerial thermal mapping, non-destructive material testing, and industrial R&D applications.

High Sensitivity, Low Noise

  • True HD Thermal Imagery

    The A8200sc produces crisp, 1.0 Megapixel (1024 x 1024) thermal images with very low noise to capture the finest image details.

  • Fast Integration Times

    Snapshot mode lets you capture every pixel from a scene simultaneously, which is crucial to measuring temperatures of fast-moving objects.

  • Standard Video Interfaces

    Standard interfaces include GigE Vision®, CoaXPress, and HD-SDI, and are independently controlled for greater recording and display flexibility.

Connectivity and Compatibility

Connectivity and Compatibility

The FLIR A68200sc is plug-and-play with third-party software, and works seamlessly with FLIR ResearchIR for intuitive viewing, recording, and advanced processing of thermal data. Use the optional SDK for integration into your own custom software program.

Specifications
Overview
Detector Type
FLIR indium antimonide (InSb)
Dynamic Range
14-bit
Mounting
2 ea. 1/4 -20 tapped holes 1 ea. 3/8-16 tapped hole
Power
24 VDC (<50 W steady state)
Size [L x W x H ] w/o Lens
8.9 x 4.6 x 5.3 in (226 x 117 x 135 mm)
Spectral Range
3.0 – 5.0 µm
Weight [without lens]
8.2 lbs (3.73 kg)
Well Capacity
2.0 M electrons
Zoom
Video Zoom is Auto Selected; Full Res = 1x, 1/4 Res = 2x
Connections & Communications
Analog Video
NA
Synchronization Modes
Sync In, Sync Out
Environmental
Operating Temperature Range
-20°C to 50°C (-4°F to 122°F )
Optional Temperature Range
Up to 1,500°C (2,732°F) Up to 3,000°C (5,432°F)
Standard Temperature Range
-20°C to 350°C (-4°F to 662°F)
Storage Temperature Range
-55°C to 80°C (-67°F to 176°F)
Imaging & Optical
AGC
Linear, PE, DDE
Available Lenses
17 mm, 25 mm, 50 mm, 100 mm, 200 mm
Camera Control
GenICam, RS-232
Camera f-number
f/4.0
Close-up Lenses/Microscopes
1x, 4x
Detector Pitch
18 µm
Digital Data Protocol
Gigabit Ethernet (GigE Vision® 2.0) & CoaXPress
Filtering
Behind-the-lens filter holder
Focus
Manual
Frame Rate [Full Window]
50Hz
HD Video
HD-SDI (720p/50/59.9, 1080p/25/29.9)
Max Frame Rate
50 Hz full frame
Minimum Integration Time
480 ns
Operability
>99.5% (99.9% typical)
Palette
Selectable 8-bit
Readout
Snapshot
Readout Modes
Asynchronous Integrate While Read; Asynchronous Integrate Then Read
Resolution
1024 x 1024
Sensor Cooling
Closed cycle linear
Subwindow Modes
Flexible (steps of 16 columns, 8 rows)
Command and Control
GenICam
Measurement & Analysis
Accuracy
±1°C or ±1% of reading Valid for 0°C to 3000°C on standard lens & filter configurations only
NETD
<20 mK
Thermal Imaging
Detector Resolution
1024 x 1024
