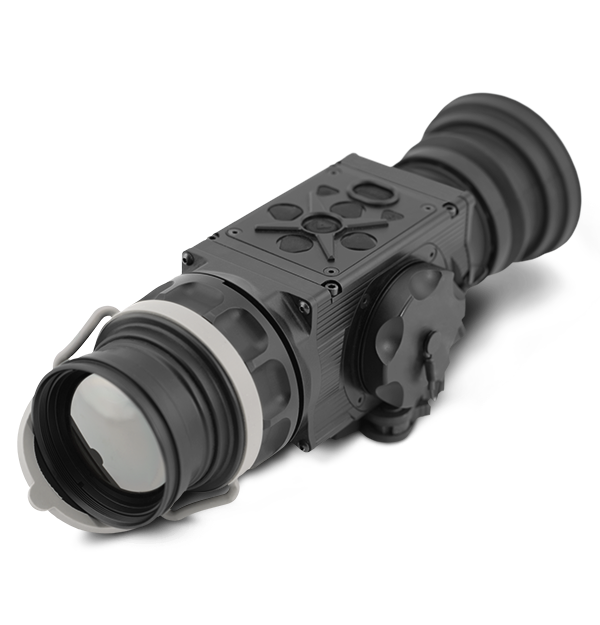

50 mm Thermal Clip-On System

FLIR Apollo Pro MR

Model: Apollo Pro MR 640 50mm (30 Hz)
Go to Support Page
product image

Converting any standard day scope into a thermal imager, the FLIR Apollo Pro MR detects and engages targets day or night. The Apollo Pro MR packs state-of-the-art technology into a rugged housing, providing sharp thermal imaging in the toughest conditions. Quick-release Picatinny rail mounting makes installation possible in seconds and using an existing day scope reticle allows immediate shot precision—no rezeroing required.

Rugged Thermal Imaging at the Ready

  • Start-Up Precision

    Use of existing day scope reticle removes the need to rezero and allows familiar shooting position and eye relief.

  • Reliable Toughness

    Extended battery life up to seven hours and ruggedized housing maintain vision in harsh weather conditions.

  • Exceptional Detection

    50 mm optical lens and FLIR Tau 2 thermal core work with onboard image processing to quickly and clearly detect targets downrange.

Specifications
System Overview
Dimensions (L x W x H)
215 × 76 × 76 mm (8.5 × 3.0 × 3.0 in)
Focus Range
5m to inf.
Pixel Size
17 µm
Warranty
2 years standard, 3 years with product registration
Height of the Scope Axis above Rail
40 mm (1.57 in)
Magnification
Unity (1×)
Digital Compass
Yes
Digital Inclinometer
Yes
Eye Relief [mm]
-
Optional Accessories
Mil-Standard Hard Shipping/Storage Case #102, Extended Rail Adapter #85, Extended Battery Pack, AMRF2200 - Advanced Modular Range Finder, HD DVR Digital Video Recorder, IRIS Wireless Head Mounted Display
Recoil Resistance
0.50 BMG weapon shock
Warranty on Detector
10 Years
Weight [w_o Batteries]
0.95 kg (2.0 lbs)
Windage Adjustment Range [NTSC_ PAL]
±96MOA / ±80MOA
Windage_Elevation Boresight Increment [NTSC]
1.2 mOA, 0.34 mils, 1.2 in/100 yd, 3.4 cm/100 m
Windage_Elevation Boresight Increment [PAL]
1 mOA, 0.3 mils, 1 in/100 yd, 3 cm/100 m
Accessories
Included Accessories
Battery Set, AWReC (Advanced Wireless Remote Control 5-buttons), Soft carrying Case, Light-Suppressor 1, Light-Suppressor 2, Video Cable, Picatinny adapter for AWReC (Advanced Wireless Remote Control), Instruction Manual with Warranty Card, Light-Suppressor 3, Packing Box, Key (used to remove the battery cap insert), Battery Box Extender Ring (for AA batteries), Battery Cartridge (for AA batteries), Light Suppressor for Day Scope, Lens Tissue
Connections & Communications
Remote Control
Wireless 5-button
Video Recording
Optional Digital Video Recorder with SD card slot
Analog Input and Output Format [resolution]
NTSC (640 × 480 pixels) / PAL (768 × 574 pixels)
Environmental & Approvals
Operating Temperature
-51°C to +57°C (-59°F to +134°F)
Storage Temperature
-57°C to +85°C (-70°F to +185°F)
Imaging & Optical
Active Contrast Enhancement
Yes
Digital Zoom
1×, 2×, 4×, and 8×
Diopter Adjustment
-
Display Type
AMOLED SVGA 060
Resolution
0.34 mRad (70 SOA)
Smart Scene Optimization
Yes
Thermal image palettes
White Hot, Black Hot, Sepia, Fusion, Rainbow, and Rain
Boresight Retention
-
Diopter Adjustment Range
-
Reticle Type
6-Pattern Digitally Controlled Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, and No Reticle
Automatic Gain Control [AGC]
Yes
Boresight Accuracy
-
Boresight Adjustment [Pix_MOA]
-
Boresight Repeatability
-
Digital Angle Cosine Indicator
Yes
Display Brightness
Discretely Adjustable to 8 Levels
Elevation Adjustment Range [NTSC _ PAL]
±72MOA / ±60MOA
Exit Pupil Diameter [mm]
25 mm
Field of View [angle]
12.5° × 10°
Focus Method
Manual
Information_Based Histogram Equalization [IBHEQ] _ SKY_SEA
Yes
Objective F_number
1:1.4
Objective Focal Length
50 mm
Objective Lens Type
Germanium
Pixel Array Format
640 × 512
Pixel Display Format
800×600
Reticle Color
Black, White, Red, Cyan
Second Generation Digital Detail Enhancement [DDE] _ Sharpness
Yes
Silent Shutterless NUC [SSN]
Yes
Type of Focal Plane Array
FLIR Tau 2
User_Controlled Manual Non_Uniformity Correction_ Flat_Field Correction [UCMNUC_ FFC]
Yes
Power
Battery
Four CR123A 3V Lithium batteries or four AA 1.5V
Battery life
Up to 7 hrs (optional up to 14 hrs)
Battery status indicator
Yes
Start Up Time
3 sec
External Power Supply
6 VDC/ 600mA
Presentation
Refresh Rate
30 Hz
