3 Mega Pixel Corner Camera

Ariel 3MP Corner Camera

Support Page (temporary link)

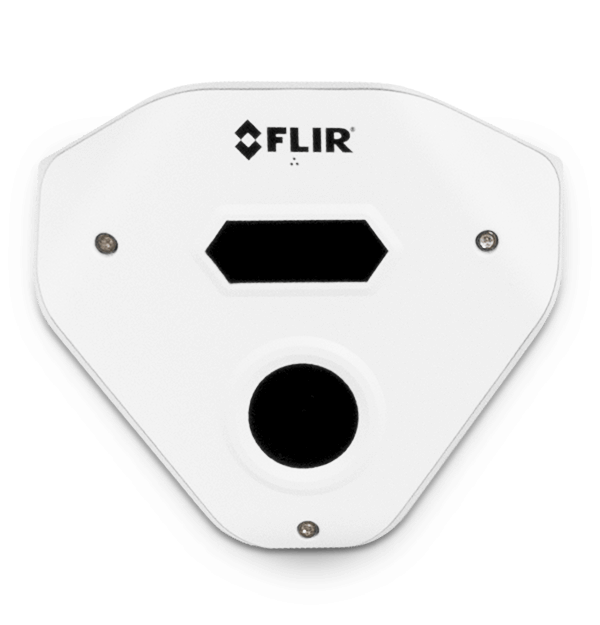

product image

The Ariel 3MP Corner Camera features a unique corner-shape form factor and extended FOV lens that provides ceiling-to-floor and wall-to-wall coverage. Due to its corner mounting, ligature-free housing and discrete infrared illumination, the Ariel 3 MP Corner camera is an ideal solution for any deployment that requires full coverage from a single camera — including correctional institutions, healthcare facilities, building lobbies and elevators.

Full coverage with a durable housing

  • Durable housing

    A rugged, no-ligature housing resists tampering, yet its sleek design makes it suitable for both industrial and commercial locations.

  • Extended field of view

    The camera's specialty lens provides ceiling-to-floor and wall-to-wall coverage with no blind spots.

  • Covert low light color and IR performance

    The camera delivers extreme color sensitivity and IR-illumination that is imperceptible to the human eye.

Specifications
Overview
Alarm Output
1 Relay Contact
AES
1/1.75 to 1/10,000 (auto)
BLC
On / Off
Day/Night Mode
Yes
Dimensions
184 x 179 x 59 mm
Firmware Upgrade
Flash memory for upgrade of camera firmware over the network
Privacy Zones
Yes
Scanning Mode
Progressive
Security
User account with password protection and IP filter
Signal to Noise Ratio
±50 dB
Tamper Detection
Yes
Warranty
According to FLIR RMA Policy and Process Notice document
Alarm
Alarm In
1 Dry Alarm Contact
Audio
Audio Input
Built in Microphone, G.711 a/µ-law, AAC support
Audio Intensity Detection
Yes
Compliance & Certifications
International
CE marked, EN61000-6-3 & EN50130-4, RoHS, RCM
MTBF [hrs]
382189
ONVIF Compliance
Onvif Profile S & G
USA
UL 60950, FCC Part 15 (subpart B, class A)
Connections & Communications
Ethernet
10/100, auto sensing, half / full duplex (RJ45)
Network Protocol
TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP
Remote Configuration
Via web browser or supported video management software
Supported Web Browser
Internet Explorer 10+, Firefox 50+, Chrome 55+
Environmental
Humidity
90% (non-condensing)
Operating Temperature
-40°C to 50°C (-40°F to 122°F)
Storage Temperature
-40°C to 60°C (-40°F to 140°F)
Imaging & Optical
AGC
Auto
DSS
Max. shutter 1/7.5(6.25)~1/60(50) / min.
Image Sensor
1/2.8" BSI CMOS
Lens Type
2.1mm, 120° HFOV x 90° VFOV, F1.8, D/N
Mechanical IR Cut Filter
Yes
Noise Reduction
3D
Sensitivity
0.02 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE
Sensor Resolution
2048 x 1536
WDR
1/1.75 to 1/10,000 (auto)
White Balance
Auto / ATW / Manual / One Push
Lens Window Transmittance
0.45
Lens - IR Window
IK10 Vandal Resistant Polycorbonate
IR Illuminator
IR Distance
up to 10 m (33 ft.)
Angle of Illumination
Full 60°
LED Type
High efficiency SMD
Peak Emission Wavelength [nm]
940.0
Physical
Enclosure
IK10+ 50 Joule Impact Resistant / IP66
Unit Weight
1.21kg (2.67 lbs.)
Power
Input Voltage
802.3af PoE
Power Connection
PoE
Power Consumption
3.4W / 9.4W with heater and IR
Video & Recording
Rate Control
CVBR
Resolution Range
Scalable from SVGA to 3MP
SD Card Recording
microSDXC up to 64GB (Class 10)
Video Compression
Fully compliant multi-stream H.264 main/high profile + MJPEG
Video Motion Detection
Yes
Maximum Performance
H.264 30/25 fps@QXGA + SVGA(NTSC/PAL) or H.264 15/12 fps@QXGA +1280x960 + SVGA (NTSC/PAL)
Video Bandwidth
Configurable between 64Kbps and 20Mbps
