1080p WDR Bullet Camera

Ariel Full HD Bullet

Go to Product Support

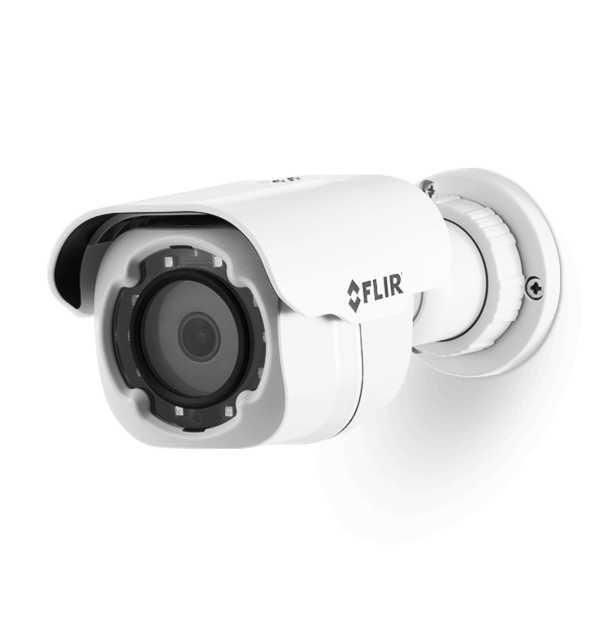

product image

The Ariel CB-3102 camera features FULL HD 1080p video that guarantees frame rates in high motion, complex and low light scenes, and lowers overall utility costs and carbon footprint. The Ariel CB-3102 delivers predictable storage, reducing the Total Cost of Ownership. The camera easily handles wide variations in motion and lighting found in airports, city surveillance projects, critical infrastructure sites, commercial offices and campuses.

Contact Sales
  • Multi-stream H.264 video

    Crisp, clean video for supreme identification

  • Guaranteed frame rates

    Maintains evidentiary integrity of video in challenging surveillance conditions, regardless of motion/scene complexity.

  • Auto-tune technology

    Best out-of-the-box experience with no adjustments, eliminating service calls.

Contact Sales

Want more information on this product?

Call 1-800-322-3731 to speak with a knowledgeable specialist.

Specifications
General
AES
1/7.5 to 1/10,000 (auto)
Day/Night Mode
Yes
Dimensions
CB-3102-01-I: 180 x 86 x 80 mm (7.08 x 3.39 x 3.15 in.) CB-3102-11-I: 215 x 86 x 80 mm (8.48 x 3.39 x 3.15 in.)
Enclosure
Indoor/Outdoor: IK7 rated vandal IP67
Firmware Upgrade
Flash memory for upgrade of camera firmware over the network
Input Voltage
802.3af PoE
Power Connection
PoE
Power Consumption
CB-3102-01-I: 5W / 9W with heater and IR CB-3102-11-I: 8W / 12W with heater and IR
Privacy Zones
Yes
Scanning Mode
Progressive
Tamper Detection
Yes
Unit Weight
CB-3102-01-I: 0.45kg (0.98 lbs.) CB-3102-11-I: 0.675kg (1.49 lbs.)
Cyber Security
Security
User account with password protection and IP filter
Environmental
Humidity
90% (non-condensing)
Operating Temperature2
-40°C to 50°C (-40°F to 122°F)
Storage Temperature
-40°C to 60°C (-40°F to 140°F)
Measurement & Analysis
Automatic Gain Control
Auto
PTZ
Pan/Tilt Rotate
360, ±80° and 360
System Integration
Alarm In
CB-3102-11-I: 1 dry alarm contact
Angle of Illumination
Full 60°
Audio Input
CB-3102-11-I: G.711, AAC 8KHz 16bit
Ethernet
10/100, auto sensing, half / full duplex (RJ45)
IR Distance
up to 30m (98 ft.)
LED Type
high efficiency SMD
Network Protocol
TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP
Peak Emission Wavelength [nm]
850.0
Remote Configuration
via web browser or supported video management software
Supported Web Browser
Internet Explorer 10+
Video & Recording
Maximum Performance
H.264 30/25 @ 1080p + 720p + D1 (NTSC/PAL)
Rate Control
CVBR
Resolution Range
Scalable from D1 to FHD 1080p
SD Card Recording1
microSDXC up to 128GB (Class 10)
Video Bandwidth
Configurable between 64Kbps and 20Mbps
Video Compression
Fully compliant multi-stream H.264 main/high profile + MJPEG
Video Motion Detection
Yes
Visible Camera
Backlight Compensation
On / Off
DSS
1/7.5 to 1/50 or 1/60 with up to 8x sensitivity boost in color or night mode
Image Sensor
1/2.8" BSI CMOS
Lens Type
CB-3102-01-I: Fixed 2.8mm, 102° HFOV, F1.8, D/N CB-3102-11-I: Varifocal 3-10mm, 92°-27° HFOV, F1.4, D/N, Motorized with auto-focus and auto-iris
Mechanical IR Cut Filter
Yes
Noise Reduction
3D
Sensitivity
0.03 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE
Sensor Resolution
2048 x 1536
Signal to Noise Ratio
±50 dB
White Balance
Auto / ATW / Manual / One Push
Wide Dynamic Range
On / Off - 3 levels
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
