FULL-HD MINI DOME

FLIR ARIEL™ CM-3202

Go to Product Support

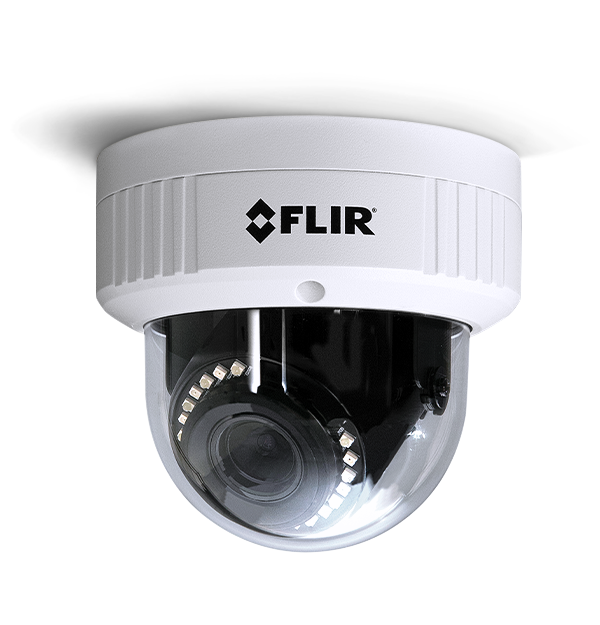

product image

The Ariel CM-3202 mini dome camera offers 1080p video and fast frame rates in high-motion, low light scenes. True wide dynamic range (WDR) on the CM-3202 captures sharp video in complex environments, such as critical infrastructure sites, commercial offices, and large campuses. With a strong H.265 built-in motion processing architecture, the Ariel CM-3202 mini dome delivers predictable, efficient streaming and storage, reducing utility costs and total cost of ownership (TCO).

Contact Sales
  • CLEAR IMAGING IN HARSH CONDITIONS

    High-resolution imaging with shutter WDR performs in low light environments.

  • RELIABLE STORAGE AND FRAME RATES

    Dependable performance and simple integration with existing systems.

  • SECURE AND USER-FRIENDLY

    A new, simplified web interface and cybersecurity improvements help keep your facility safe.

Contact Sales

Want more information on this product?

Call 1-800-322-3731 to speak with a knowledgeable specialist.

Specifications
General
AES
1/2 to 1/32,000 (auto)
Day/Night Mode
Yes
Firmware Upgrade
Flash memory for upgrade of camera firmware over the network
Privacy Zones
Yes
Scanning Mode
Progressive
Tamper Detection
Yes
Cyber Security
Security
User account with password policy, block multiple failed logins, IEEE 802.1X HTTPS, digest authentication, IP filtering
Measurement & Analysis
Automatic Gain Control
Auto
System Integration
Angle of Illumination
Full 120°
Ethernet
10/100, auto sensing, half / full duplex (RJ45)
IR Distance
up to 30 m (98 ft.)
LED Type
high efficiency SMD
Network Protocol
DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4/6, NTP, RTSP/RTCP/RTP,QoS, SMTP, TCP, TLS/TTLS, UDP, UPnP, 802.1X,SNMP v1/2c/3,DDNS,PPPoE
Peak Emission Wavelength [nm]
850.0
Remote Configuration
Via web browser or supported video management software
Supported Web Browser
Internet Explorer 11, Mozilla Firefox, Chrome, Safari, Microsoft Edge
Video & Recording
Maximum Performance
H.265 / H.264 30/25 @ 1080p + 720p + D1 (NTSC/PAL)
Rate Control
CBR & CVBR
Resolution Range
Scalable from D1 to FHD 1080p
SD Card Recording1
microSDXC up to 256GB (Class 10)
Video Bandwidth
Configurable between 64Kbps and 20Mbps
Video Compression
Fully compliant multi-stream H.265 + H.264 base/main/high profle + MJPEG
Video Motion Detection
Yes
Visible Camera
Backlight Compensation
On / Off
DSS
1/7.5 to 1/25 or 1/30 with up to 4x sensitivity boost in color or night mode
Image Sensor
1/2.8", DOL 2F CMOS
Lens Type
Varifocal 2.7-13.5mm, 35°- 105° HFOV, F1.4, D/N, Motorized with auto-focus and auto-iris
Mechanical IR Cut Filter
Yes
Noise Reduction
2D/3D
Sensitivity
0.02 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE
Sensor Resolution
1920 x 1080
Signal to Noise Ratio
±50 dB
White Balance
Auto / ATW / Manual / One Push
Wide Dynamic Range
On / Off (78dB)
Accessories
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
