Multifunctional Thermal Imaging Monocular

FLIR Breach® PTQ136

Go to Support Page

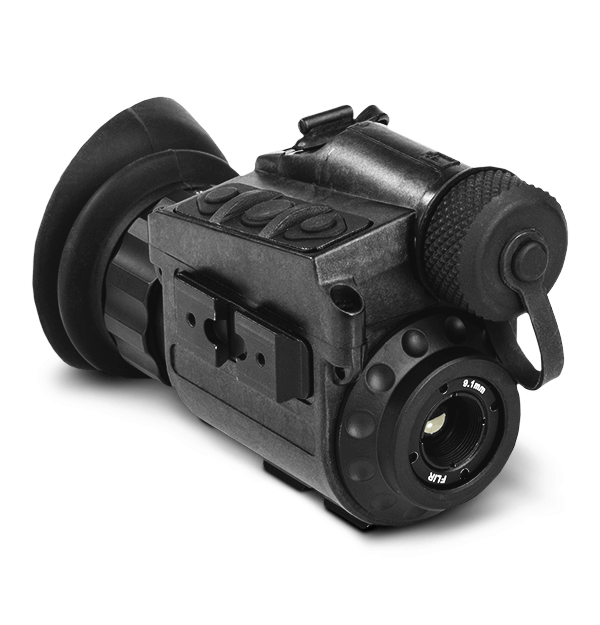

product image

Built for the rigors of law enforcement, the FLIR Breach PTQ136 spots the heat of suspects and objects in total darkness. Featuring the new FLIR Boson core and a compact design, the FLIR Breach offers unmatched tactical awareness. Weighing only 7.4 ounces (210 grams), the FLIR Breach can be concealed in a pocket or mounted to a helmet with its mini-rail feature, while adding minimal weight to officers’ heavy gear. Additional features include onboard recording and seven palettes for fast detection of suspects or evidence, day or night.

$2,495.00
Buy Now

  • Exceptional Vision

    The advanced image processing of the internal FLIR Boson thermal core and a bright high definition display create excellent image clarity and provide better detection and classification, day or night

  • Convenient Hands-Free Operation

    For hands-free operation, Breach PTQ136 has multiple mini-rail mounting points designed to allow for a wide variety of head mounts, helmet mounts, and to install additional equipment.

  • Superior Value

    Document operations with on-board video recording and image capture. Choose from multiple palettes to perfect viewing during varied situations. Enhance situational awareness with a digital compass/inclinometer

Specifications
System Overview
Detector Type
320 × 256 VOx Microbolometer
Eye Relief
16 mm
Field of View [H x V]
24° × 19°
Internal Memory
Up to 1,000 images and 2.5 hours of video on internal memory
Package Includes
Thermal Monocular, CR123A Battery, Lens Cloth, Hard Case
Size
139 × 70 × 49 mm (5.5 × 2.7 × 1.9 in)
Start up
< 1.5 seconds
Warranty
2 years standard, 3 years with product registration
Weight
210 g (0.46 lbs)
Lens System
9.1 mm; F/1.04
Optical Magnification
Connections & Communications
Video Output
Digital Video
Environmental & Approvals
Operating Temperature Range
-20°C to +50°C (-4°F to +122°F)
Storage Temperature Range
-40°C to +60°C (-40°F to +140°F)
Imaging & Optical
Digital Zoom
1× - 4× continuous
Image Processing
FLIR Proprietary Digital Detail Enhancement™
Diopter Adjustment Range
-5 to +5 dpt
Power
Battery Life (Operating)
Up to 90 minutes at 20°C
Battery type
One CR123A 3V Lithium battery
Presentation
Display
Quad-VGA (1280 × 960) FLCOS
Control Panel Buttons
Configures Operational Settings: Unit On/ Off, Display Brightness Control, Image Palette Control, Digital Zoom Control, On-Screen Menu Navigation, NUC.
Refresh Rate
60 Hz
Media Gallery
Breach - Helmet Mount
Breach - Palettes Video
Related Documents
Reviews

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
