Imaging Multimeter with IGM™

FLIR DM284

Go to Support Page

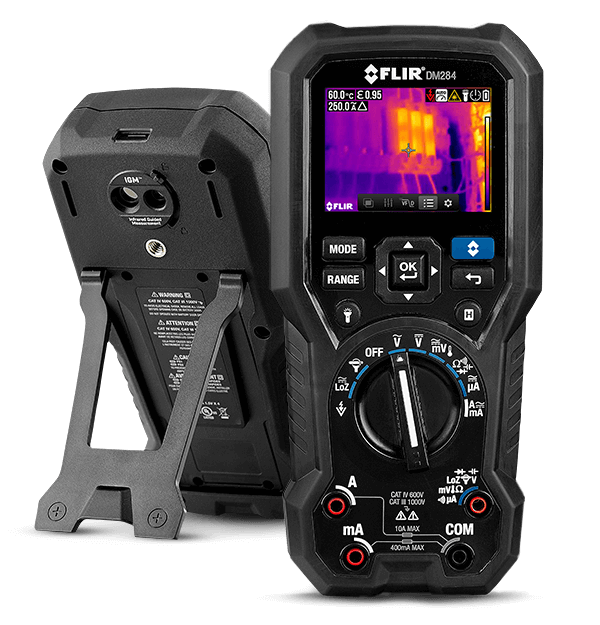

product image

The FLIR DM284 is a professional, all-in-one True RMS digital multimeter and thermal imager ideal for field electronics, commercial electric, light industrial, field service, and HVAC work. Featuring Infrared Guided Measurement (IGM) technology powered by a built-in 160 × 120 FLIR thermal imager, the DM284 visually guides you to the precise location of an electrical problem without direct contact. You'll pinpoint hot spots faster, safer, and more efficiently.

$599.99
Buy Now

The DMM you can't afford to work without

  • Pinpoint Problems Quickly and Safely

    Find more work by visually identifying issues with IGM, and scan a panel or cabinet for hazards without direct contact.

  • Solve Challenging Problems Easily

    Performs 18 DMM measurement functions to help you verify the most complex electrical issues with trusted readings every time

  • Built to Last

    Durable and drop tested, DM284 features built-in worklights, large display screen, onboard laser pointer, and an intuitive user interface

Specifications
Overview
IR Resolution
19,200 pixels (160 x 120)
Laser Pointer
Yes
Sensitivity
≤ 150 mK
Size (L x W x H)
200 x 95 x 49mm; Weight: 537g
Warranty
10 year
Weight
537 g (18.9 oz)
Worklights
Yes
Connections & Communications
Connectivity
N/A
Environmental
Drop test
3m
Emissivity Settings
4 Presets with Custom Adjustment
IP Rating
IP54
Imaging & Optical
Display Size
2.8"
Focus
Fixed
FOV (w x h)
46° x 35°
Palette
Iron, Rainbow, Greyscale
Thermal Imaging Detector
FLIR Lepton® microbolometer
Measurement & Analysis
AC/DC LoZ V
Range: 1000 V Basic Accuracy: ±1.5%
AC/DC microAmps
Range: 4,000 µA Basic Accuracy: ±1.0%
AC/DC mVolt
Range: 600mV Basic Accuracy: 1% / 0.5%
Capacitance
Range: 10.00 mF Basic Accuracy: ±1.9%
Flex Clamp Range
3000 A AC (Optional TA72/74)
Min/Max - Avg
Yes
Resistance
Range: Basic Accuracy: 6.000 MΩ ±0.9% 50.00 MΩ ±3.0%
Temperature Accuracy
3°C or 3.5%
Temperature Range
14°F to 302°F (-10°C to 150°C)
VFD
Range: 1000 V Basic Accuracy: ±1.0%
AC/DC Amps
Range: 10.00 A Basic Accuracy: ±1.5% / 1.0%
True RMS
Yes
Continuity check threshold
20Ω to 200Ω
Meter Data
Auto Power Off
Yes
Performance
Measuring Rate
3 samples per second
Power
AC/DC Volts
Range: 1000V Basic Accuracy: ±1.0% / 0.09%
Battery
4 A A A batteries; optional TA04 Li-Poly rechargeable battery
Storage Media
Data Logging & Storage
N/A
Reviews

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.
