Infrared Camera for CO Detection and Electrical Inspections

FLIR GF346

Model: GF346, 14,5°
Go to Support Page

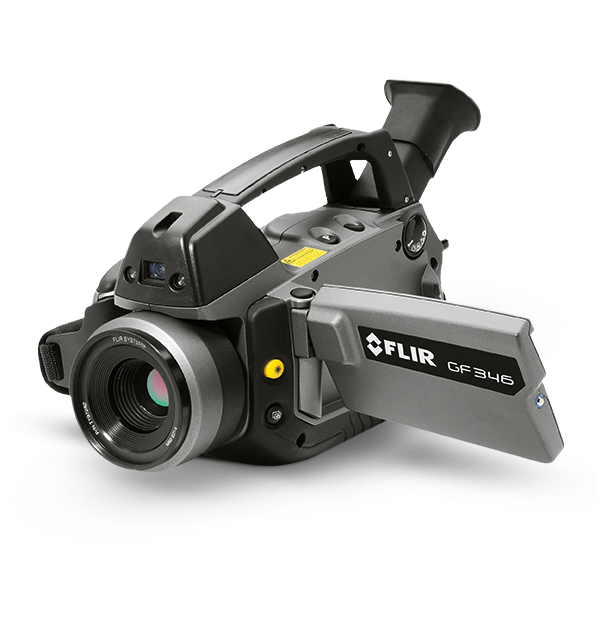

product image

The FLIR GF346 optical gas imaging camera detects carbon monoxide (CO) and 17 additional gases without the need to interrupt your plant's production process. CO emissions can be a significant threat to primary steel manufacturing operations; even the slightest leak in a vent stack or pipe can have a devastating effect. With the FLIR GF346, inspectors can scan large areas from a safe distance, pinpointing leaks in real-time, reducing repair down-time, and providing repair verification.

Stop Leaks. Maximize Uptime.

  • Improve Efficiency

    The GF346 can be used to quickly scan broad areas for CO gas, without interrupting industrial processes.

  • Increase Worker Safety

    CO gas is toxic in high concentrations, so pinpointing the source of leaks with a GF346 reduces risk of exposure.

  • Integrate with Predictive Maintenance

    The GF346 accurately measures temperatures up to 300°C, making it a sound addition to your facility’s predictive maintenance program.

The Sensitivity to Visualize Even Small Leaks

The Sensitivity to Visualize Even Small Leaks

With its superior resolution, thermal sensitivity, and the option of a High Sensitivity Mode, the FLIR GF346 allows you to visualize leaks so you can pinpoint the exact source of the emissions and begin repairs immediately. In addition, the GF346 can accurately measure temperatures, allowing you to note temperature differentials and improve visual contrast for better gas plume detection.

Specifications
Overview
Detector Type
Cooled InSb
Packaging Size
400 x 190 x 510 mm (15.7 x 7.5 x 20.1 in.)
Profile
1 live line (horiz. or vert.)
Zoom
1 – 8× continuous digital
Area Box
5 (min./max./avg.)
Hazardous Location Compliance
NA
Laser Spot
Yes
Connections & Communications
Video Out
HDMI
Imaging & Optical
Field of view (FOV)
14.5° × 10.8°
Focus
Auto & Manual
Global Positionsing System [GPS]
Yes
Resolution
320 × 240
Spectral Response
4.52 – 4.67 µm
Total Pixels
76.8
Color LCD
4.3"; 800 × 480 Pixels
High Temp Option
No
MPEG Video Recording
Yes
On Camera Display
Widescreen 800 x 480 pixel LCD Tiltable 800 × 480 pixel OLED viewfinder
Radiometric JPG
Yes
Radiometric Video [15Hz]
No
Video Camera wLamp
3.2 MP
Measurement & Analysis
Accuracy
±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F)
Spot Meter
10.0
Temperature Range
-20°C to 300°C (-4°F to 572°F)
Thermal Sensitivity
<15 mK @ 30°C (86°F)
Delta T
Yes

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.
