Real-Time Concrete Strength Logger

intelliRock III Maturity Logger

Go to Product Support

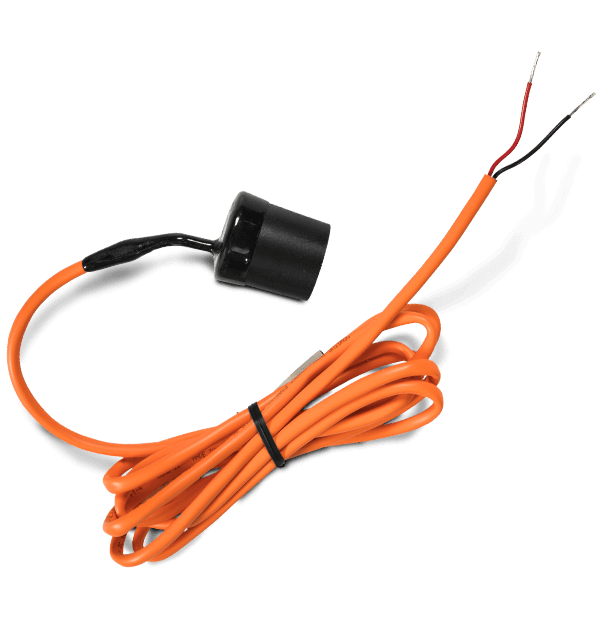

product image

intelliRock Maturity Loggers analyze the time and temperature profile of in–place concrete to calculate its strength in real–time with the push of a button. The maturity loggers are based on ASTM C 1074 "Standard Practice for Estimating Concrete Strength by the Maturity Method."

Document Early Strength and Temperature Information

  • ACCELERATE WORKFLOW

    Speed up concrete operations and extend the construction calendar in cooler weather

  • ENSURE QUALITY

    Improve quality control with early validation of batching consistency while decreasing labor and material costs

  • SEE MORE DATA

    The logger stores the current maturity and temperature value every minute for 180 days

Specifications
Overview
Overload Dose Rate Range
10 mSv/h to 500 mSv/h (1 rem/h to 50 rem/h)
Certifications and Standards
ASTM C 1074
Environmental
Temperature
Yes
Meter Data
Logger Data Storage
999 logger downloads
Maturity Integration Period
1 minute
Max Storage Time & Temperature
85°C (185°F) for 5 years
Max Temperature Measurement Range
-20°C to 125°C (-4°F to 257°F)
Temperature Measurement Rate
1 minute (resolution for min/max)
Temperature Resolution
1°C
Time Accuracy
1 minute per month
Time
Yes
Maturity
Yes
Available Cable Lengths
Available in 4, 8, 15, 30, 50, 100ft increments
Calibration Curve
Holds 5 calibration curves for strength conversions
Unique Serial ID
Yes
Operation Period
180 days
NIST Traceable Batch Testing
Yes
Contact Sales

Want more information on this product?

Call 1-866-636-4487 to speak with a knowledgeable specialist.

Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.

intelliRock III Maturity Logger
