Concrete Strength and Temperature Profiling System

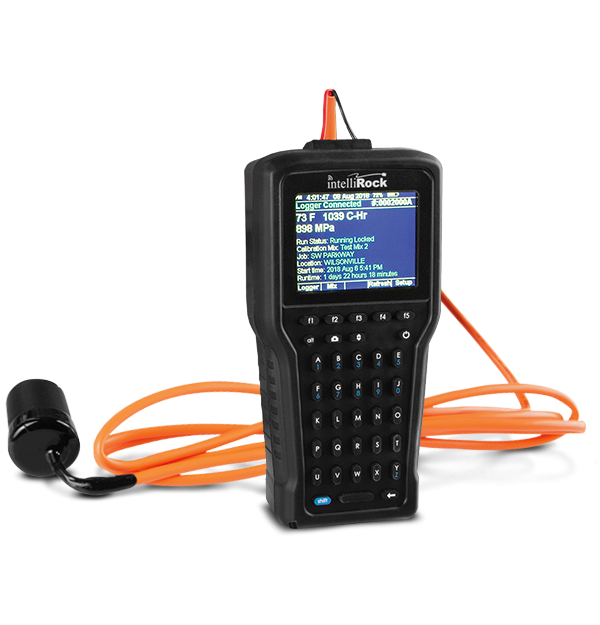

intelliRock III Reader

Go to Support Page
product image

The intelliRock III reader provides connectivity to loggers in the field so critical decisions can be made at the touch of a button. You can easily activate loggers to start tracking key data points during concrete curing. It features a built–in thermal imager for temperature profiling and onsite problem detection. Use the reader to input important notes and jobsite or location information specific to that logger.

BUILD FASTER, STRIP FORMS EARLIER, OPTIMIZE POST-TENSION WORK

  • AVOID THERMAL ISSUES

    Use the built-in 160 × 120 resolution FLIR thermal imager to identify surface temperature issues and monitor insulation performance or cylinder curing conditions.

  • MEET STRICT REQUIREMENTS

    View stored temperature and strength data and record important notes in order to keep the project on track

  • REDUCE COSTS

    Cut the time spent using equipment rentals, and reduce cement and labor costs

Specifications
Overview
Notes
8+ job site names and logger locations
Overload Dose Rate Range
10 mSv/h to 500 mSv/h (1 rem/h to 50 rem/h)
Camera
160 × 120 resolution thermal imager
Environmental
Operating Temperature
-20°C to 99°C (-4°F to 210.2°F)
Temperature
Yes
Measurement & Analysis
Temperature Accuracy
±1°C, -20 to 80°C (4 to 176°F), ±2°C, 80 to 99°C (176 to 210.2°F)
Meter Data
Logger Data Storage
999 logger downloads
Max Storage Time & Temperature
85°C (185°F) for 5 years
Max Temperature Measurement Range
-20°C to 125°C (23°F to 257°F)
Temperature Measurement Rate
1 minute (resolution for min/max)
Temperature Resolution
1°C (1.8°F)
Time Accuracy
1 minute per month
Time
Yes
Maturity
Yes
Calibration Curve
Holds 5 calibration curves for strength conversions
Temp
Yes
Other
Events
6+ max and min temperature
General Reader Specs Operating Temp
-5° to 50°C (23° to 122°F)
PC Interface
USB and Bluetooth
Power
Battery
Rechargeable
