2.1MP Full HD IP Bullet Camera

ioi HD Analytics Bullet

Model: CB-5222-11, Motorized varifocal, 31.9° (Tele) 93.2° (Wide) FOV
Go to Product Support
product image

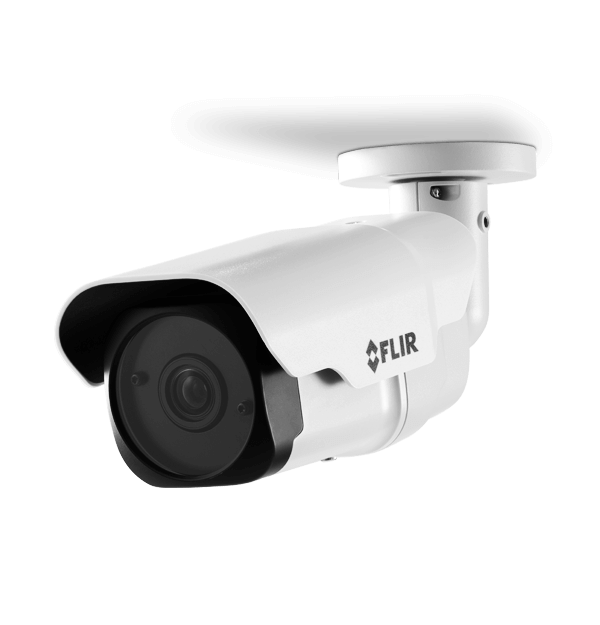

The CB-5222 is a full HD analytic, indoor/outdoor bullet camera that combines military-grade video analytics with broadcast-quality IP camera technology. The camera detects intrusions, fence intrusions, tripwire crossover, unattended baggage, removed object, stopped vehicle, and loitering. Rules and scheduled actions are easily defined and configured through the camera’s simplified interface. Alarms can be sent by FTP, ONVIF, relay, or over the web.

Contact Sales
  • Integrated video analytics

    User-customized detection rules, positioning criteria, responses, alarms and scheduled actions improve security and situational awareness.

  • Choice of lenses

    Increased detection distance means fewer cameras needed to cover the same area.

  • Reliable and distinguishable detection

    features automatic calibration of depth settings, a choice of three motorized varifocal lenses, and a single PoE/PoE+ cable connection.

Contact Sales

Want more information on this product?

Call 1-800-322-3731 to speak with a knowledgeable specialist.

Specifications
General
AGC Control
Auto/Manual
Day/Night Mode
Auto/On/Off
Dimensions (L x W x H)
285 x 96 x 94mm (11.1 x 3.8 x 3.7 in.) with sunshield and fully extended mounting arm
Enclosure
IP 66 weatherproof protection, IK10 vandal-proof
Event Notification
HTTP, FTP, ONVIF and Relay
Power Consumption
25W max
Power Source
12VDC/24VAC/PoE (802.3af Class 0)/PoE+ (802.3at)
Protocols
IPv4, TCP, UDP, RTP, RTSP, HTTP, ICMP, FTP, SMTP, DHCP, UPnP, IGMP, SNMP, ONVIF Profile S, NTP
Warranty
According to FLIR RMA Policy and Process Notice document
Weight
940 g (2.07 lbs.)
Compliance & Certifications
International
CE marked, EN55022-1998 class A, EN55024, RoHS
Safety
UL, CE
USA
FCC Part 15 (subpart B, class A)
Cyber Security
Security
IP Filter, IEEE 802.1x
Environmental
EMC
FCC 47 CFR Part 15, Subpart B Class A; CE Class A; RCM
Environmental
RoHS
Humidity
10% to 90% (non-condensing)
Operating Temperature
-40° to 50°C (-40° to 122°F) w/ 12VDC/24VAC/PoE+ -10° to 50°C (14° to 122°F) w/ PoE
Storage Temperature
-20° to 70°C (-4° to 158°F)
System Integration
Alarm In
1x dry contact
Analog Video Output
Composite 1v p-p (PAL or NTSC), 1 x BNC 75Ω
Audio Compression
G.711/G.726
Bi-directional Audio
Line In/Line Out
Browsers
Internet Explorer 8, 9, 10, and 11
Ethernet Interface
1x RJ45 10/100/1000Mbps (IEEE 802.3/802.3u/802.3ab)
OUT/Relay Output
1x relay output (rated load 0.3A@ 30VDC)
Video & Recording
Video Compression
H.264, MJPEG
Video Resolution
Full HD 1080p
Video Streaming
30FPS @ 1920 x 1080 @ H.264
Visible Camera
Backlight Compensation
On/Off
Bandwidth
Configurable 64Kbps - 8Mbps
DSS
1/15 to 1/10,000 with up to 32x sensitivity boost in color or night mode
Effective Pixels
1920 x 1080
Field of view (FOV)
93.2° (Wide); 31.9° (Tele)
f-number
F1.4
Focal Length
3 to 10.5mm
Image Sensor
1/2.8" 2.1 Megapixel Progressive Exmor CMOS
Iris Control
DC-Iris
Lens Type
Motorized vari-focal
Mechanical IR Cut Filter
Yes
Noise Reduction
2DNR/3DNR
Sensitivity
Color: 0.2 lux@f1.4 B/W: 0.1 lux@f1.4 @ 15 FPS, 36dB max. gain
Sensor Resolution
1920 x 1080
White Balance
Auto
Wide Dynamic Range
True/Shutter (96 dB) and Digital
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
