Tactical Handheld Thermal Monocular


Model: LSX - 19mm 60Hz
Go to Product Support

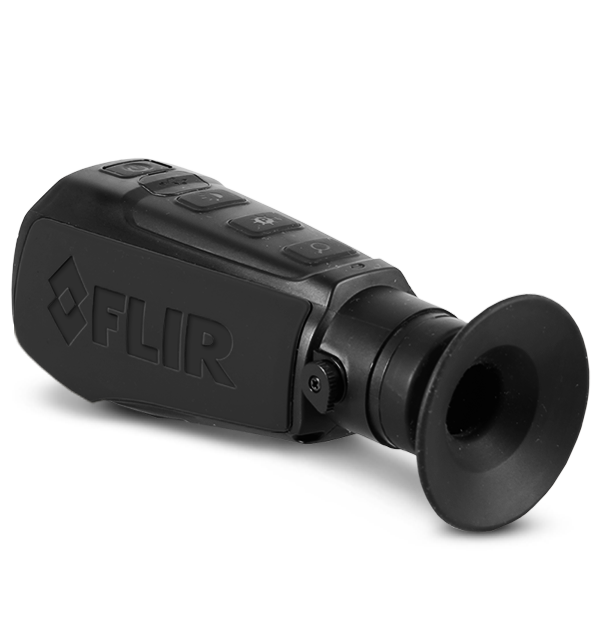

product image

The FLIR LS-X and LS-XR handheld thermal monoculars are designed for the men and women who serve and protect. This powerful, easy-to-use imager gives officers the tactical advantage when pursuing suspects, looking for evidence, or conducting search and rescue. The LS-X and LS-XR feature high resolution displays, extended zooming capabilities, and video output. Whatever you need to see, find it with the FLIR LS-X and LS-XR.

Buy Now
FREE Shipping
Shipping & Returns
Contact Sales
  • Superior Thermal Vision

    An improved eyepiece display takes full advantage of the high resolution thermal core, 5x magnification, and InstAlert™ hot object highlighting.

  • Simple Operation

    This thermal monocular has intuitive controls that make single-handed use a breeze, even with gloves on.

  • Portable and Rugged

    These monoculars fit easily into pockets, packs, or the included Molle pouch.

Contact Sales

Want more information on this product?

Call 1-800-254-0630 to speak with a knowledgeable specialist.

Field of view (FOV)
17° x 13° NTSC
System Overview
Built-in Display
640 × 480 LCD Display
Detector Type
336 x 256 VOx Microbolometer
Drop Test Rating
1 m
Package Includes
Handheld Thermal Camera,USB Power Adapter/Charger,Wrist strap, Custom Video out cable, USB Cable, Quick Start Guide, Molle bag
IP-67, Submersible
Size (L x W x H)
6.70" × 2.31" × 2.44"
Thermal Sensitivity
< 50 mK @ f/1.0
2 years standard, 3 years with product registration
7.5 - 13.5 µm
Connections & Communications
Video Output
NTSC composite video Thru USB port via Custom USB to RCA cable. Output switchable to PAL via user GUI
Environmental & Approvals
Operating Temperature
-4°F to 122°F (-20°C to 50°C); Laser = 4°F to 122°F (-10°C to 50°C)
Storage Temperature
-40°F to 140°F (-40°C to 60°C)
Imaging & Optical
Adjusts Display Brightness Setting
Image Polarity
White Hot / Black Hot / InstAlert™; Selectable
Image Processing
FLIR Proprietary Digital Detail Enhancement ™
On-Screen Symbology
6.70" x 2.31" x 2.44"
12 oz (340 g)
Battery Life (Operating)
> 5 Hours
Battery Type
Internal Li-Ion Cell
Start Up Time
< 1.5 seconds
Black Hot & White Hot
Black Hot / White Hot / InstAlert™
Laser Pointer
Red Laser Pointer
White Hot / Black Hot / InstAlert™; Selectable
Power Button
On / Off
Splash Screen
Video Refresh Rate
< 9Hz NTSC or 60 Hz
Zoom Button
2× & 4×
Range Performance
Detect Man (1.8m x 0.5m)
570 m
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
