Thermal Imaging Riflescope

FLIR Predator

Model: Predator 336 2-8x25 (30 Hz)
Go to Support Page
product image

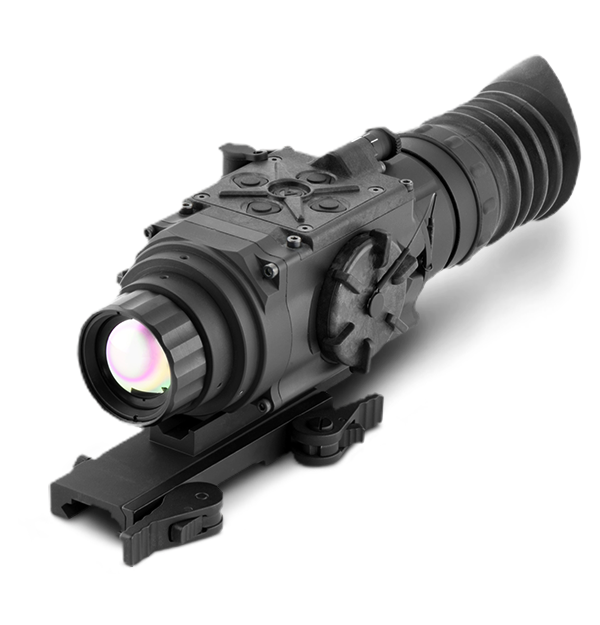

Ready for day and night engagements, the FLIR Predator offers trusted thermal imaging in a compact, standalone weapon sight. Built with FLIR’s Tau 2 thermal core, the Predator can detect targets in complete darkness and through atmospheric obscurants such as snow, dust, smoke, and fog. The lightweight and intuitive weapon sight offers multiple user-controlled palettes and reticles for better target visibility and shot accuracy.

Proven Thermal Detection

  • 24/7 Rapid Target Acquisition

    Multiple user-controlled reticles and 25 mm lens allow rapid target acquisition in complete darkness and low-visibility weather conditions.

  • Compact, Powerful

    Reliable thermal imaging in one of the lightest and most compact weapon sights in its class.

  • Fast, Intuitive Control

    Quick-release Picatinny rail mount, three second start-up time, and wireless remote control allow fast and simple operation.

Specifications
System Overview
Dimensions (L x W x H)
274 × 74 × 83 mm (10.8 × 2.9 × 3.3 in)
Focus Range
20m to inf.
Pixel Size
17 µm
Warranty
2 years standard, 3 years with product registration
Height of the Scope Axis above Rail
42 mm (1.65 in)
Magnification
1.6x
Digital Compass
-
Digital Inclinometer
-
Eye Relief [mm]
45 mm
Optional Accessories
Mil-Standard Hard Shipping/Storage Case #101, AMRF2200 - Advanced Modular Range Finder, Extended Battery Pack, IRIS Wireless Head Mounted Display, HD DVR Digital Video Recorder
Recoil Resistance
700 g
Warranty on Detector
10 Years
Weight [w_o Batteries]
0.63 kg (1.4 lbs)
Windage Adjustment Range [NTSC_ PAL]
±96MOA
Windage_Elevation Boresight Increment [NTSC]
1.2 mOA, 0.35 mils, 1.3 in/100 yd, 3.5 cm/100 m
Windage_Elevation Boresight Increment [PAL]
-
Accessories
Included Accessories
Soft carrying Case, Battery Cassette, Packing Box, Instruction Manual with Warranty Card, Two Lithium Battery CR123A, AWReC (Advanced Wireless Remote Control) #94, Picatinny adapter for AWReC (Advanced Wireless Remote Control), Video Cable, Lens Tissue
Connections & Communications
Remote Control
Wireless
Video Recording
Optional Digital Video Recorder with SD card slot
Analog Input and Output Format [resolution]
PAL/ NTSC (640×480 pixels)
Environmental & Approvals
Operating Temperature
-40°C to +50°C (-40°F to +122°F)
Storage Temperature
-50°C to +70°C (-58°F to +158°F)
Imaging & Optical
Active Contrast Enhancement
Yes
Digital Zoom
1×, 2x, and 4x
Diopter Adjustment
Manual
Display Type
LED VGA
Smart Scene Optimization
Yes
Thermal image palettes
White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and OEM Custom
Boresight Retention
-
Diopter Adjustment Range
±5 diopter
Reticle Type
6-Pattern Digitally Controlled Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, and No Reticle
Automatic Gain Control [AGC]
Yes
Boresight Accuracy
-
Boresight Adjustment [Pix_MOA]
Digitally Controlled
Boresight Repeatability
-
Digital Angle Cosine Indicator
-
Display Brightness
Discretely Adjustable to 8 Levels
Elevation Adjustment Range [NTSC _ PAL]
±72MOA
Exit Pupil Diameter [mm]
10 mm
Field of View [angle]
13° × 10°
Focus Method
-
Information_Based Histogram Equalization [IBHEQ] _ SKY_SEA
-
Objective F_number
1:1
Objective Focal Length
25 mm
Objective Lens Type
Germanium
Pixel Array Format
336×256
Pixel Display Format
640×480
Reticle Color
Black, White, Red, Cyan
Second Generation Digital Detail Enhancement [DDE] _ Sharpness
Yes
Silent Shutterless NUC [SSN]
Yes
Type of Focal Plane Array
FLIR Tau 2
User_Controlled Manual Non_Uniformity Correction_ Flat_Field Correction [UCMNUC_ FFC]
Yes
Power
Battery
Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2)
Battery life
Up to 4 (optional up to 12 hrs)
Battery status indicator
Yes
Start Up Time
3 sec
External Power Supply
6 VDC/ 600mA
Presentation
Refresh Rate
30 Hz
