PTZ Security Camera

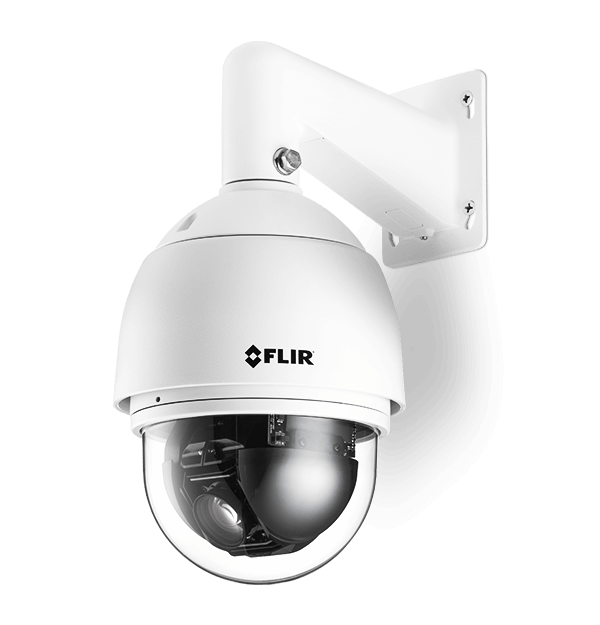

Quasar 1080p PTZ Camera

Model: CP-3211-180
Support Page (temporary link)
product image

The Quasar HD 1080p PTZ security camera produces broadcast-video quality and guaranteed frame rates in high motion, complex and low light scenes, such as airports, urban streets, critical infrastructure, commercial offices and college campuses. The FLIR Quasar CP-4221-30x HD PTZ delivers one of the lowest bandwidths in the industry due to advanced H.264 motion processing.

Broadcast-quality security video in complex environments

  • Crisp, clean video

    Multi-stream H.264 video delivers superior identification with low bit rates.

  • Guaranteed frame rates

    The Quasar 1080p PTZ Camera adapts frame rates to suit a mulit-faceted lighting conditions.

  • Best out of box experience

    Auto-tune technology makes setting up the Quasar 1080p PTZ Camera easier.

Specifications
Overview
Alarm
Input: 4 dry alarm contact Output: 2 relay contact, 30 VDC at 2A or 125 VAC at 0.5A max
Dimensions
Indoor (CP-3211-180): 171.7 x 228.71 mm (6.76 x 9 in.)
Firmware Upgrade
Flash memory for upgrade of camera firmware over thenetwork (1GB Flash / 2GB RAM)
Focal Length
4.7 to 84.6 mm
Privacy Zones
On / Off - 16 zones
Scanning Mode
Progressive
Security
User account and password protection
Signal to Noise Ratio
±50 dB
Tamper Detection
On / Of
AGC Control
Auto / Manual
Day/Night: IR Cut Filter
Auto / Manual
Alarm
Alarm Reaction
Preset / Sequence / Auto Pan / Pattern
Audio
Audio Bandwidth
Configurable between 16 kbps & 64 Kbps (depending on compression method)
Audio Connections
Terminal block
Bi-directional Audio
Full duplex, line / mic in and line out, G.711, G.726
Compliance & Certifications
International
CE marked, EN55022-1998 class A, EN55024, RoHS
USA
UL, FCC Part 15, CE, RoHS
Connections & Communications
Configuration
Remote: via web access or supported video management software
Ethernet
10 / 100 Base-T auto sensing, half / full duplex (RJ45)
Network Protocol
IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS,ICMP, FTP,SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, IEEE 802.1X,QoS,ONVIF Profile S
Supported Web Browser
Internet Explorer 6.0+
Environmental
Humidity
95% (non-condensing)
Operating Temperature
Indoor (CP-3211-180): 0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 70° C (-4° to 158° F)
Imaging & Optical
Backlight Compensation
On / Of
Digital Zoom
1 to 10 variable
DSS
1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode
Image Sensor
1/3" CMOS
Maximum resolution
1280x1024 (HD720p)
Minimum Illumination
0.3 (color) / 0.04 (BW), measured with DSS Off at 30 IRE
Optical Zoom
18x
Sensor Resolution
1280 x 1024
White Balance
Auto / Indoor / Outdoor / ATW / Manual
Focus Mode
Auto / Manual
Image Rotation
Normal / Flip / Mirror
Iris Control
Auto / Manual
Wide Dynamic Range (Multi-shutter)
On / Of
Physical
Unit Weight
Indoor (CP-3211-180): 1.62 Kg (3.57 lbs.)
Bubble F-Stop
F0.0 - clear bubble
Bubble Rating
IK10 vandal resistant polycarbonate
Enclosure Rating
Tamper resistant surface mount or IK10 rated vandal IP66 outdoor housing
Power
Input Voltage
PoE+ 802.3at (indoor only), AC 24V ±10%
Power Connection
Terminal block
Power Consumption
Max 20W indoor (CP-3211-180), max 65W outdoor (CP-3211-181) with heater operating
Resume After Power Loss
Yes
PTZ
Auto Flip
Digital / Mechanical / Off
Presets
256.0
Auto Pan
4.0
Home Function
Preset / Sequence / Auto Pan / Pattern
Horizontal Viewing Angles
55.4° (Wide) to 3.1° (Tele)
Manual Speed
0.13° to 90° / sec
Pan Travel
360° continuous
Pattern
8.0
Preset Accuracy
0.225°
Preset Speed
5° to 400° / sec
Proportional Pan & Tilt
On / Off (pan and tilt speed proportional to zoom ratio)
Sequence
8.0
Tilt Travel
-10° to 190°
Video & Recording
Rate Control
CBR / VBR
Resolution Range
Scalable from CIF to HD 1.3MP
SD Card Recording
SDHC up to 32 Gbyte
Video Compression
Fully compliant multi-stream H.264 Main Profile + MJPEG
Video Motion Detection
On / Off - up to 10 independent zones
Maximum Performance
45fps @ 1.3MP / 60fps @ HD720p
Video Bandwidth
Configurable between 64 Kbps and 8 Mbps
