Thermal Fire Sensor for Rolling Stock

RSX-F

Support Page (temporary link)

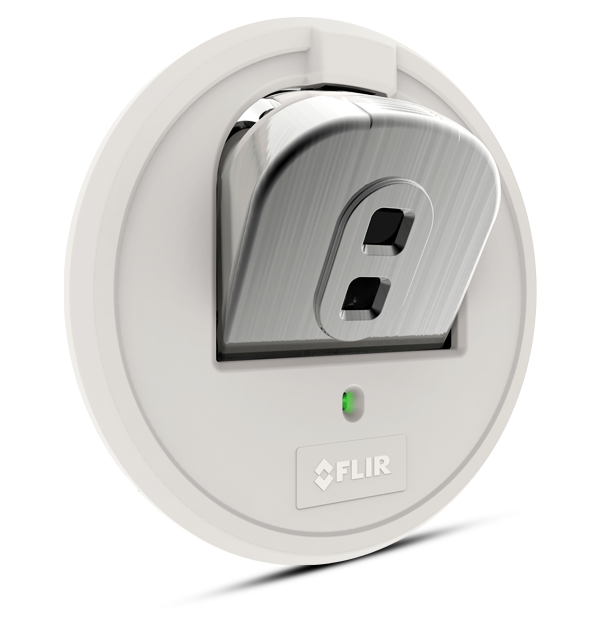

product image

The FLIR RSX-F is an intelligent sensor which uses thermal and visual imaging for advanced fire detection, occupancy detection and CCTV monitoring. The compact and discrete design allows for easy and ?exible installation even when limited space is available

Railway Fire Detection

  • ADVANCED THERMAL FIRE DETECTION

    The FLIR RSX-F uses a thermal sensor with on-board fire detection algorithms to detect fire in transportation systems by detecting excessive heat.

  • SEAT OCCUPANCY

    RSX-F also detects the heat signatures of people onboard to determine seat occupancy to optimize the platform passenger ?ow and adjust the train’s HVAC system.

  • EASY INSTALLATION

    Designed for quick and easy installation on the car’s wall or ceiling, RSX-F is fully compliant with the EN 50155 standard covering railway electronic equipment.

Specifications
Overview
Detector Type
Focal Plane Array (FPA), uncooled VOx microbolometer, LWIR sensor
Spectral Range
8 to 14 µm
Connections & Communications
Connectivity
Power line communication Network connectivity & outputs via TI BPL2
Environmental & Approvals
EMC
EN 50121-3-2
Enclosure
EN45545 HL3
IP Rating
IP65
Safety
EN50122
Temperature Range
-44° to 60°C (-47.2° to 140°F)
Imaging & Optical
Frame Rate
9 FPS
Resolution - Visual
1920 x 1080 HD color CMOS
Power
Input Voltage
12 - 42V AC/DC via TI BPL2
Power Consumption
3 W
Thermal Imaging
Resolution - Thermal
160 x 120
