Handheld Thermal Imaging Bi-Ocular

Scout BTS-Series

Model: Scout BTS-X Pro, 320×240
Go to Support Page

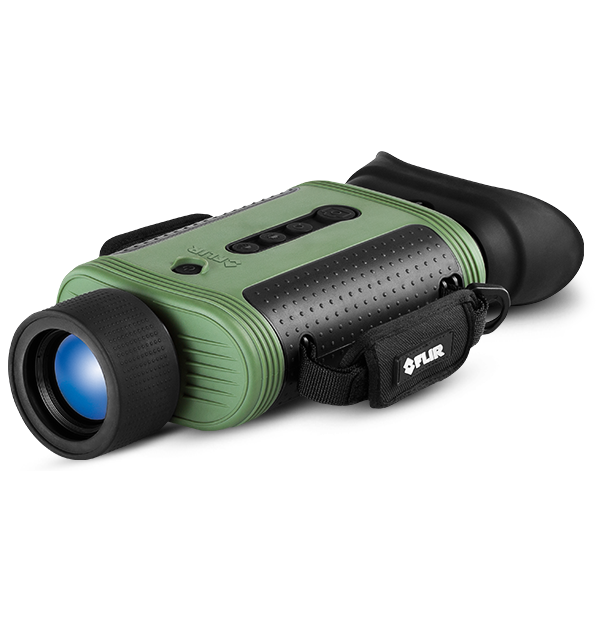

product image

The FLIR Scout BTS biocular camera offers serious outdoor enthusiasts, wildlife professionals, and game wardens powerful reliable thermal imaging performance and control. The cameras features a full-coverage eyepiece, ergonomic comfort, intuitive controls, interocular adjustment, and the unrivaled performance only FLIR can deliver. The FLIR Scout BTS biocular is a must-have if you want to experience nature in vivid detail 24/7, from two kilometers or more away.

Experience Wildlife at Night

  • Extended Range Options

    The BTS-X Pro offers native 320 × 240 resolution, while the BTS-XR Pro offers 640 × 480 resolution via the video jack.

  • One-Touch Recording

    The ability to capture both photos and video is standard on all Scout Bi-Ocular models.

  • Enhanced Lens Surfaces

    Raised rubber sleeves and captive low-pro le lens caps help protect your lens investment as well as provide excellent grip/sensitivity.

System Overview
Operating Temperature
-4°F - 140°F (-20°C – 60°C)
IP-67 (with lens attached only)
320 × 240
Size (L x W x H)
11.0" × 6.5" × 2.63"
Storage Temperature
-40°F - 167°F (-40°C - 75°C)
Weight [without lens]
2.20 lbs
External Video [via RCA jack]
320 × 240 NTSC or PAL
Included Accessories
Hot Shoe Charging & Video Output Attachment, 4 Rechargeable AA NiMH Batteries, AC Power Adapter
File Storage & Data Transfer
Still Image Storage
Video Storage
4 AA Batteries; NiMH (included), Li-Ion, or Alkaline
Start Up Time
2 seconds
White Hot, Black Hot, InstAlert™
Viewfinder Video Output [9 Hz refesh rate]
NTSC or PAL composite video

Want more information on this product?

Call (888) 959-2259 to chat with a knowledgeable specialist.
