• Easy, Flexible Operation

    View data on both the large backlit LCD display and from iOS® or Android™ mobile devices using the ExView app via Bluetooth.

  • Standalone Capture and Display

    Measure sound level from 30 to 130 dB with ‘A’ weighted frequency for human hearing, record max/min readings, and freeze the display with ‘data hold’ feature.

  • Portable Collection, Analysis, and Reporting

    Export .CSV data; create and send PDF reports including photos of the measurement location taken with a connected smartphone or tablet camera.

Specifications
General Specifications
Frequency Bandwidth
31.5 Hz to 8 kHz
Response Time
Fast/Slow
Sampling Rate
Fast: 125 ms (8 times/s); Slow: 1000 ms (1 time/s)
Sound Range (dB)
30 to 130 dB
Sound Range (dB) Basic Accuracy
±1.5 dB
Sound Range (dB) Max Resolution
0.1 bB
Weighting
A
Wireless Connectivity
Bluetooth® (via ExView iOS/Android mobile app)
Wireless Transmission Range
up to 90 m line of sight
Additional Details
Certifications
CE, FCC, UKCA
Dimensions
6 × 2.1 × 1.1 in (153 × 53 × 28 mm)
Operating Conditions
32 to 104°F (0 to 40°C),≤80% RH
Power
3 × AAA (1.5V) batteries
Warranty
2 years
Weight
3 oz (84.6 g)
Related Documents

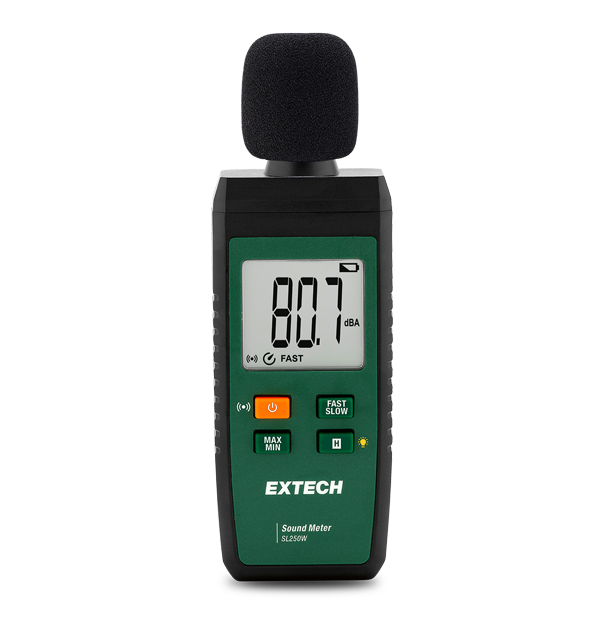

Extech SL250W

$109.99
