HD Performance Handheld Infrared Camera

FLIR T1020 (Science)

Go to Product Support

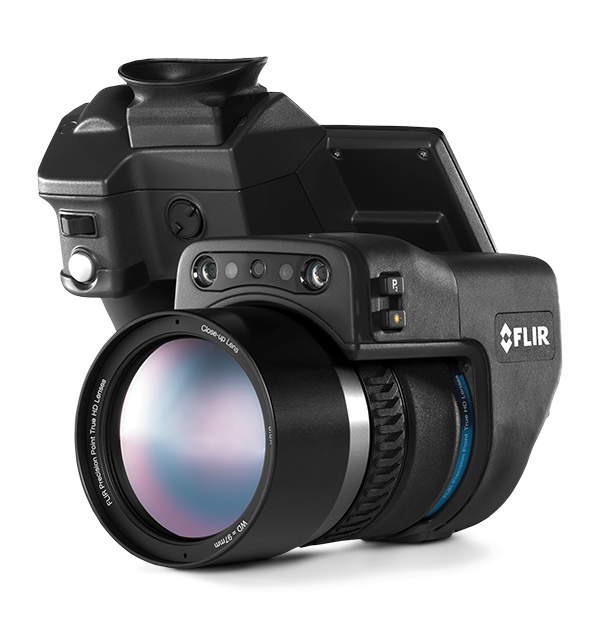

product image

The T1020 (T1K) is a portable, high-speed, high definition infrared cameras designed to help you capture stunning thermal images and precise temperature measurement, whether you’re in the field or in the lab. Stream lossless radiometric imagery at up to 240 Hz with windowing through the optional High Speed Interface (HSI)*. When paired with a close-up 3× lens, T1K cameras accurately measure temperature on targets down to 51 μm. Whether you’re an engineer, researcher, or product developer, these battery-powered, handheld cameras offer the features and flexibility you need.

  • HD Image Clarity

    An extraordinarily sensitive detector and HD-ready optics provide stunning thermal images and accurate, non-contact temperature measurements

  • Portability and Flexibility

    Battery-powered, handheld camera goes where you need it. Wi-Fi communication simplifies image sharing, remote control and viewing, and quick reporting.

  • High-Speed Data

    Stream uncompressed data to a PC or capture fully dynamic radiometric video in the camera.

Specifications
Overview
Color Alarm (Isotherm)
Above/below/interval
Compass
Camera direction automatically added to every image
Detector Type
Focal plane array (FPA), uncooled microbolometer
Difference Temperature
Delta temperature between the measurement functions and the reference temperature
Display
Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
Housing material
Magnesium
Laser
Activated by a dedicated button
Laser Alignment
Position is automatically displayed on the infrared image
Laser Classification
Class 2
Laser Type
Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red)
Multi Spectral Dynamic Imaging (MSX)
Thermal image with enhanced detail presentation
Optional Lenses
7°, 12°, 28°, 45°, and 3x close-up lenses
Profile
1 line profile with max./min. temperature
Text
Add table, select between predefined templates
Time Lapse
15 seconds to 24 hours
User Presets
The user can select and combine measurements from any number of spots/boxes/circles/profiles/delta
Voice
60 seconds (via Bluetooth) stored with the image
Weight
2.1 kg (4.6 lb)
Connections & Communications
Antenna
Internal
Audio
Microphone headset via Bluetooth for the voice annotation of images
Bluetooth
Frequency range: 2402–2480 MHz, supports 2.1 and 4.0
Interface
USB Micro-B, Bluetooth, Wi-Fi, HDMI
METERLiNK
Wireless connection (Bluetooth) to: FLIR meters with METERLiNK
METERLiNK - Bluetooth
Communication with headset and external sensors
SD Card
One card slot for removable SD memory cards
Storage Media
Removable media SD or SDHC card. Class 10 or better recommended
USB
USB Micro-B: data transfer to and from a PC, uncompressed colorized video
USB - Standard
USB 2.0 High Speed USB Micro-B connector
Video Connector Type
HDMI type C
Video Out
HDMI 640 × 480 HDMI 1280 × 720 DVI 640 × 480 DVI 800 × 600
WiFi
Standard: 802.11 b/g/n Frequency range: 2412–2462 MHz Max. output power: 15 dBm
Environmental
Atmospheric transmission correction
Automatic, based on the inputs for distance, atmospheric temperature, and relative humidity
EMC
ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) ICES-003
Emissivity Correction
Variable from 0.01 to 1.0 or selected from the materials list
Encapsulation
IP 54 (IEC 60529)
Ergonomics
The viewfinder plus the 120° rotating optical block allow you to point the camera in multiple directions while maintaining a comfortable position
Humidity (Operating and Storage)
IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles
Operating Temperature Range
-15°C to 50°C (5°F to 122°F)
Radio Spectrum
ETSI EN 300 328 FCC Part 15.247 RSS-247 Issue 2
Safety
EN/UL/CSA/PSE 60950-1
Shock
25 g (IEC 60068-2-29)
Storage Temperature Range
–40 to +70°C (–40 to 158°F)
Tripod Mounting
UNC ¼"-20
Vibration
2 g (IEC 60068-2-6)
Imaging & Optical
4.3” Display
800 × 480 pixels
Auto orientation
Automatic landscape or portrait
Automatic Image Adjustment
Standard or histogram based on the image content
Built-in Digital Camera
5 Mpixel with LED light
Camera size excl lens (L x W x H)
167.2 mm × 204.5 mm × 188.3 mm (6.6 in. × 8.0 in. × 7.4 in.)
Camera software update
Use PC software FLIR Tools
Color Palettes
Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Pitch
17 µm
Digital Camera
Field of view adapts to the infrared lens
Digital image enhancement
Adaptive digital noise reduction
Digital Zoom
1–8× continuous
Display Type
Capacitive touchscreen
Field of view (FOV)
Lens-dependent
f-number
Lens-dependent
Focal Length
45° lens: 21.2 mm (0.83 in.); 28° lens: 36 mm (1.42 in.); 3× Closeup lens: 50 mm (2.0 in.); 12° lens: 83.4 mm (3.28 in.); 7° lens: 142 mm (5.59 in.)
Focus
One shot or manual
Frame Rate [Full Window]
30 Hz
Gallery
Review thumbnail/full image on the camera Edit measurements/palettes/image modes on the camera
Global Positioning System [GPS]
Location data automatically added to every image from the built-in GPS
Image Description
Add short note (stored in the JPEG exif tag)
Image Frequency
30 Hz
Image Modes
Thermal, thermal MSX, picture in picture, digital camera
Infrared Image
Full color infrared image
IR Resolution
1024 × 768; up to 3.1 MP with UltraMax
Lens Identification
Automatic
Manual Image Adjustment
Linear based, possible to adjust level/span/max./min.
Minimum IR focus distance
1.3 m (4.26 ft)
Minimum IR–visual alignment distance
1.3 m (4.26 ft)
MSX Resolution
1024 × 768 pixels
Non-radiometric IR video recording
H.264 to the memory card
Non-radiometric IR video streaming
H.264 video using Wi-Fi H.264 video using USB
Picture-in-Picture
Resizable and movable infrared area on the visual image
Radiometric IR video recording
Real-time radiometric recording (RTRR) to the memory card
Radiometric IR video streaming
Real-time radiometric streaming (RTRS) via USB
Sketch
Draw on the thermal/digital image or add predefined stamps Separate PC software with extensive report generation
Spatial resolution (IFOV)
0.47 mrad
Spectral Range
7.5–14 µm
Thermal Sensitivity/NETD
<20 mK @ 30°C (86°F)
UltraMax
Yes
Video Lamp
Built-in LED light
Viewfinder
Built-in 800 × 480 pixels
Visual Image
Full color visual image
Visual Video Recording
H.264 to the memory card
Visual Video Streaming
H.264 video using Wi-Fi H.264 video using USB
Measurement & Analysis
Area
5 + 5 areas (boxes and circles) with max./min./average
External Optics & Windows Correction
Automatic, based on the inputs of the window transmission and temperature
Measurement Corrections
Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation
Measurement Function Alarm
Audible/visual alarms (above/below) on any selected measurement function
Measurement Presets
No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2
Object Temperature Range
-40°C to 2000°C (-40°F to 3632°F)
Object temperature range Accuracy
±1°C (±1.8°F) or ±1% at 25°C for temperatures between 5°C to 150°C ±2°C (±3.6°F) or ±2% of reading at 25°C for temperatures up to 1200°C
Optics Transmission Correction
Automatic, based on signals from internal sensors
Reference Temperature
Manually set using the difference temperature
Reflected apparent temperature correction
Automatic, based on the input of the reflected temperature
Set-up Commands
Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information
Spot Meter
10
Other
Filter_Max Frame Rate [Fill Window]
30 Hz
Touch Screen
Yes
Power
Battery operating time
>2.5 hours at 25°C (68°F) and typical use
Battery Type
Rechargeable Li ion battery
Charging system
In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging Temperature
0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to ‎45°C (‎50°F to ‎113°F)‎
Charging Time
2.5 hours to 90% capacity, charging status indicated by LEDs
External Power Operation
AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional)
Power Management
Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown
Shipping Information
Box Contents
Infrared camera with lens Battery (2 each), Battery charger, HDMI-HDMI cable, Hard transport case Large eyecup, Lens cap, Neck strap, Power supply, including multi-plugs USB cable, Standard A to Micro-B Calibration certificate, FLIR Tools+ license card, User documentation on CD-ROM Printed documentation, Bluetooth headset, SD card
Storage Media
File Formats
Standard JPEG, measurement data included CSQ, measurement data included
File Formats - Visual
Standard JPEG, automatically associated with the corresponding thermal image
Image Storage
Standard JPEG, including digital image and measurement data, on a memory card
Image Storage Mode
Simultaneous storage of thermal and digital images in the same JPEG file Option to store a digital photo as a separate JPEG file
