Thermal PTZ Dome

TCX PTZ

Model: FLIR TCX PTZ, 25° FOV, 336C
Support Page (temporary link)

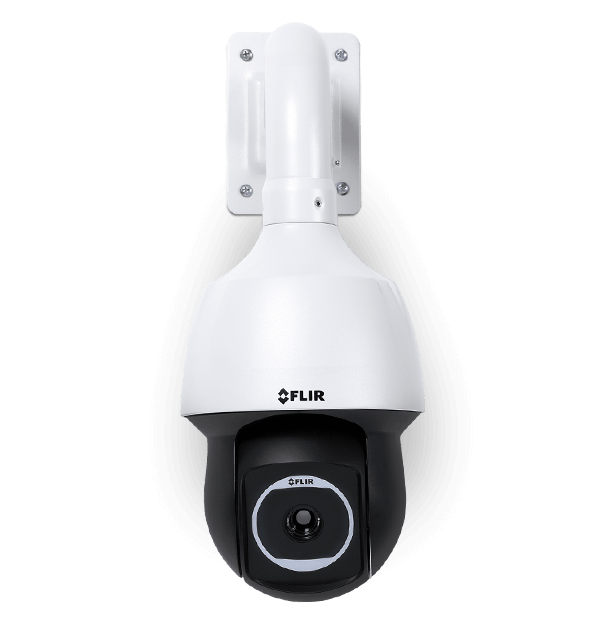

product image

The FLIR TCX Thermal PTZ camera integrates with existing alarm sensors to deliver accurate, real-time visual assessment and alarm verification 24/7. Available in 640x480 and 320x240 resolutions, the FLIR TCX PTZ has onboard Video Motion Detection (VMD) analytics. FLIR thermal cameras give you the advantage to see clearly in complete darkness without any illumination, in bright sunlight, through smoke, dust or even light fog.

The industry’s most affordable, high-performance thermal PTZ camera.

  • The Appropriate Response, Every Time

    The FLIR TXC PTZ provides real-time visual assessment and visual alarm verification with no illumination, outperforming visual cameras at night and low contrast scenes.

  • Superior Resolution and PTZ Performance

    The human observation detection range of the camera is 25° ~ up to 390m/1,270ft, and 32° ~ up to 570m/1,870ft in good conditions.

  • Easy Integration in All Environments

    Compatible with ONVIF Profile S IP, MPX (HDCVI) and analog VMS systems, TCX cameras can be installed into any new or existing system.

Specifications
Overview
Thermal FOV
25°
Compliance & Certifications
Compliance
FCC, CE
ONVIF Conformance
Profile S
Connections & Communications
Video Output
IP, MPX, and analog video outputs
Environmental
Environmental
IP66
IP Rating
IP66
Operating Temperature Range
-40°C to 60°C
Anti-Ice
Anti-Ice
High Performance Surge Protection
Yes
Imaging & Optical
Array format
336 × 240
Image Sensor
Uncooled sun-safe VOx microbolometer
Visible Camera
Wide Dynamic Range Thermal
Yes
Power
Power Input
PoE+, 24 VAC
PTZ
Tilt Speed
300°/sec
Pan Angle
Continuous 360°
Pan Speed
Up to 400°/sec
Tilt Angle
-15 to 90°, auto-flip 180°
Video & Recording
IP Video
Triple stream, H.264 and MJPEG
