Entry Level Spot Thermal Camera

FLIR TG130

Go to Support Page

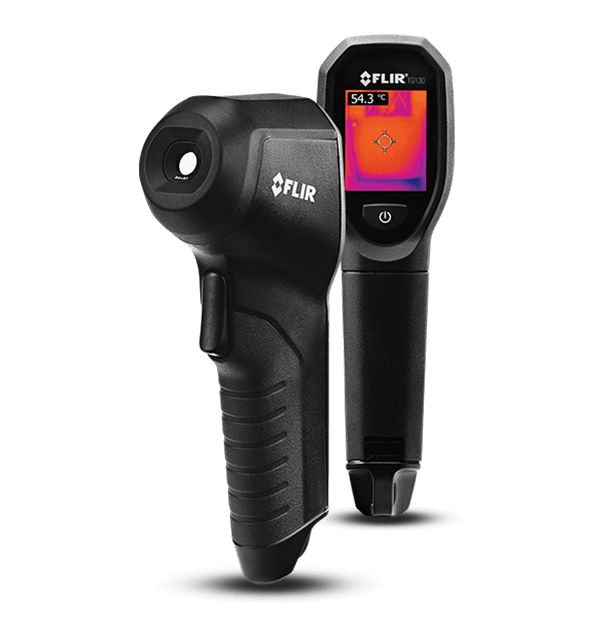

product image

Save money on heating and cooling energy costs with the FLIR TG130 Spot Thermal Camera. Quickly find and troubleshoot temperature-related issues around the house and solve problems fast.

$229.99
Buy Now

Target heat loss with point-and-click simplicity

  • Reduce Energy Costs

    Find heat loss around doors, floors, walls, pipes, or windows; locate spots where insulation is missing; and locate drafts.

  • Solve Heating & Cooling Issues

    Save time and money spent troubleshooting HVAC, electrical, and energy issues.

  • Point-and-Click Simplicity

    Aim the thermal camera at a target then click to freeze the image. No special training required.

Specifications
Overview
Detector Type
Focal plane array (FPA), uncooled microbolometer
Spectral Range
8–14 µm
Compliance & Certifications
Certifications
CE/PSE/EN/UL/CSA 60950-1
Environmental
Drop test
Designed for 2 m (6.6 ft.)
Emissivity Correction
No
Encapsulation
IP 40 (IEC 60529)
Operating Temperature Range
–10 to +45°C (+14 to 113°F)
Storage Temperature Range
–40 to +70°C (–40 to 158°F)
Imaging & Optical
Camera size (L x W x H)
169 mm × 113 mm × 48 mm (6.6 in. × 4.4 in. × 1.9 in.)
Camera weight incl battery
0.21 kg (0.46 lb.)
Color palettes
Iron
Display
1.8 in. TFT LCD
Field of view (FOV)
55° × 43°
Focus
Focus free
Image Frequency
9 Hz
Minimum Focus Distance
0.1 m (4 in.)
Measurement & Analysis
Center spot
Yes
Object Temperature Range
–10 to +150°C (+14 to +302°F)
Temperature Unit
Selectable by switch; °C or °F
Power
Battery operating time
4 hours continuous scanning
Battery type
3 × AAA (LR03)
Power Management
Fixed; 5 min.
Shipping Information
Includes
Imaging IR spot thermal camera, Printed documentation, Lanyard, 3 × AAA (LR03) batteries
