24:1 Spot IR Thermal Imaging Camera with Bullseye Laser and Type K Thermocouple

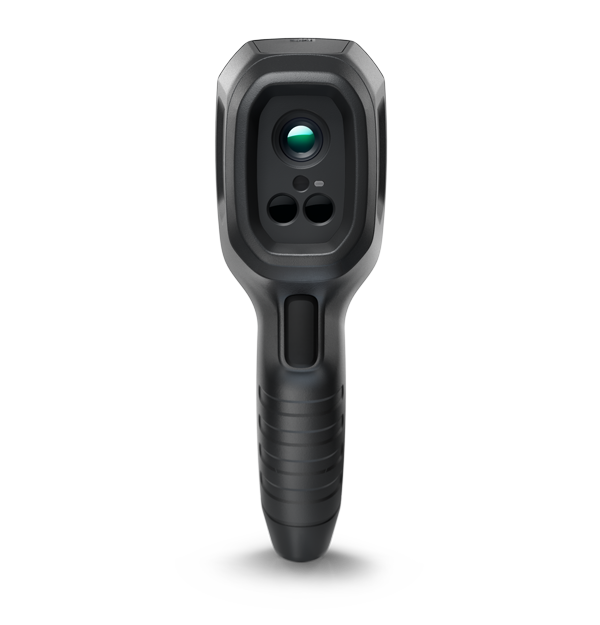

FLIR TG268

Go to Product Support

The FLIR TG268 takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance, automotive and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting. Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, and super resolution allows you to upscale images from 160 ×120 to 320 × 240 for superior detail to help you accurately target potential faults and troubleshoot repairs. Then with the FLIR METERLiNK® app, you can quickly and efficiently capture and compare readings, analyze and share images and videos, and create reports and easily share them with your team.

$499.00
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns

  • Identify Problems Quickly

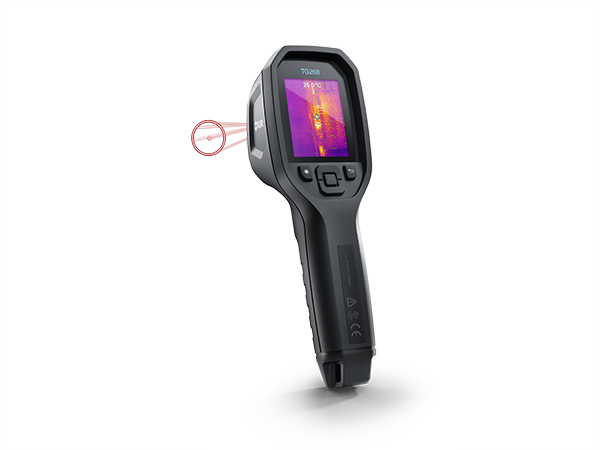

    Accurately measure temperatures up to 400°C (752°F) with a 24:1 spot size ratio and bullseye laser pointer

  • High-quality images and performance

    Diagnose problems quickly with FLIR-patented MSX image enhancement and Improve the details of native thermal images with super resolution, which allows you to upscale images to 320 × 240 (76,800 pixels) resolution

  • Work with Confidence in Rugged Environments

    The IP54 rated FLIR TG268 comes complete with a built-in LED worklight for better visibility in dark or poorly lit areas, a Type K thermocouple, and a 2 m drop test rating for durability.



METERLiNK TG_1220x628 No text.jpg

get inspection information to the people you need

FLIR METERLiNK® App

The FLIR METERLiNK® app allows you to monitor a variety of environmental and electrical conditions simultaneously with the ability to connect with up to seven FLIR compatible meters at once. METERLiNK allows you to safely capture images and monitor hazardous areas remotely and in real time. Whether you're connecting several FLIR clamp meters, digital multimeters, or any of the new METERLiNK app compatible meters, you will be able to keep tabs on key readings around your facility and easily share them with your team.

Learn More

UNRIVALED IMAGE QUALITY

MSX® Image Enhancement

The FLIR TG268 and FLIR TG298 feature FLIR's unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately on the camera's display.

TG267-buss fuse-No MSX.jpg       TG267-buss fuse-MSX.jpg
Pictured left to right: without MSX® and with MSX®






Super Resolution


FLIR TG-Series infrared cameras utilize Super Resolution technology to enhance image quality. Through Super Resolution, the native resolution of 160 × 120 effectively upscales the image to 320 × 240, delivering greater detail and improved sharpness. Super Resolution ensures clearer thermal images for more precise diagnostics. This advanced imaging capability helps users quickly identify issues, improve decision-making, and conduct more reliable thermal inspections.



Super Res Before 2.jpg      Super Res After 2.JPG

         Standard IR Resolution                         FLIR Super Resolution



Specifications
IR Resolution
160 × 120
Super Resolution 320 × 240
Thermal Sensitivity/NETD
<70 mK
Accuracy
±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F)

±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F
Field of view (FOV)
57° × 44°
Image Modes
MSX® (Multi Spectral Dynamic Imaging)
Visual with temperature reading
Display
320 × 240, 2.4 in color LCD
Storage Media
8 GB
Imaging & Optical
Built-in Digital Camera
Yes
Color Palettes
Iron, Rainbow, White hot, Black hot, Arctic, Lava
Detector Pitch
12 µm
Detector Type
Focal plane array (FPA), uncooled microbolometer
Digital image enhancement
Yes
Field of view (FOV)
57° × 44°
Focus
Focus free
Gallery
Yes
Image Frequency
8.7 Hz
Image Modes
MSX® (Multi Spectral Dynamic Imaging)
Visual with temperature reading
IR Resolution
160 × 120
Super Resolution 320 × 240
Laser
Class 1 laser indicates the temperature measurement area; button-activated
Minimum Focus Distance
0.3 m (0.98 ft)
Minimum Measurement Distance
0.26 m (0.85 ft)
Non-radiometric IR video recording
Yes
Spectral Range
7.5 - 14 µm
Thermal Sensitivity/NETD
<70 mK
Measurement & Analysis
Accuracy
±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F)

±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F
Camera size (L x W x H)
210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
Camera weight incl battery
0.394 kg (13.9 oz)
Center spot
Yes
Measurement Option
Non-contact surface / contact with Type-K
Object Temperature Range
−25°C to 400°C (−13°F to 752°F)
User Interface
Display
320 × 240, 2.4 in color LCD
Power
Battery operating time
5 hours continuous scanning, 4.5 hours with laser on
Battery Type
Rechargeable Li ion battery
Battery voltage
3.7 V
Charging system
Battery is charged inside the camera
Charging Temperature
0°C to 45°C (32°F to 113°F)
Charging Time
3 hours to 90%, 4 hours to 100%
Environmental & Certifications
Certifications
CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan
Drop test
Designed for 2 m (6.6 ft)
EMC
EN 61000-6-3
EN 61000-6-2
FCC 47 CFR Part 15 Class B
Encapsulation
IP 54 (IEC60529)
Humidity (Operating and Storage)
0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
Operating Temperature Range
-10°C to 45°C (14°F to 113°F)
Radio Spectrum
ETSI EN 300 328
FCC Part 15.249
RSS-247 Issue 2
EN 301 489-1:2011
EN 301 489-17:2009
Safety
CE/CB/EN61010/UL
Shock
25 g (IEC 60068-2-27)
Storage Temperature Range
−30°C to 55°C (−22°F to 131°F)
Tripod Mounting
1/4 in.-20 on handle bottom
Vibration
2 g (IEC 60068-2-6)
Warranty
FLIR 2-10 warranty
General
Package Includes
TG268
Wrist Strap Lanyard
Pouch
USB Type-C cable
Type-K Thermocouple
Printed Documentation
