Thermal Camera for Automotive Diagnostics

FLIR TG275

Go to Product Support

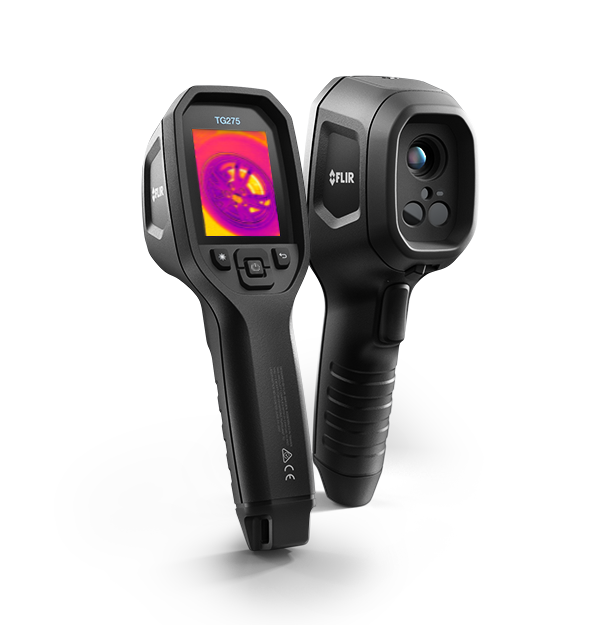

product image

The FLIR TG275 is designed specifically for automotive maintenance and repair technicians who want to accelerate diagnostic procedures and avoid undetected problems. Featuring IGM™ (Infrared Guided Measurement), this diagnostic tool combines non-contact temperature measurement and thermal imaging to help you troubleshoot repairs, spot potential faults, and record images that will reassure your customer that the problem has been fixed. This affordable thermal imager is ideal for diagnosing problems in relays and switches, parasitic drain on the battery, drive train components, HVAC system (vents), and much more.

$899.99
Buy Now

Designed for Automotive Maintenance/Repair Professionals

  • Identify more problems, faster

    19,200 pixel IR camera and temperature range up to 550°C (1022°F) surpass the limitations of spot IR thermometers

  • Superior image quality, affordable price

    Get the sharp visual detail of FLIR MSX®, displayed on a vibrant 2.4-inch screen

  • Rugged and Reliable

    Tough, drop-tested design with an IP54 enclosure that protects the camera from dirt, dust, and oil

Specifications
Overview
Accuracy
±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 550°C (212°F to 1022°F)
Detector Type
Focal plane array (FPA), uncooled microbolometer
Field of view (FOV)
57° × 44°
IR Resolution
160 × 120 pixels
Laser
Class 1 laser indicates the temperature measurement area; button-activated
Object Temperature Range
-25°C to 550°C (-13°F to 1022°F)
Thermal Sensitivity/NETD
<70 mK
Warranty
FLIR 2-10 warranty
Built-in Illuminator LED
100 lumens, 6500°K flashlight
FLIR Tools
Compatible
Connections & Communications
Interface
USB 2.0, Bluetooth
Storage Media
eMMC 4 GB
USB
USB Type-C: data transfer/power
USB - Standard
USB 2.0 High Speed
Environmental
Drop test
Designed for 2 m (6.6 ft)
EMC
• EN 61000-6-3 • EN 61000-6-2 • FCC 47 CFR Part 15 Class B
Emissivity Correction
Yes: 4 preset levels with custom adjustment of 0.1–0.99
Encapsulation
IP 54 (IEC60529)
Humidity (Operating and Storage)
0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
Operating Temperature Range
• Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F) • Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F)
Radio Spectrum
• ETSI EN 300 328 • FCC Part 15.249 • RSS-247 Issue 2 • EN 301 489-1:2011 • EN 301 489-17:2009
Safety
CE/CB/EN61010/UL
Shock
25 g (IEC 60068-2-27)
Storage Temperature Range
-30°C to 55°C (-22°F to 131°F)
Tripod Mounting
1/4 in.-20 on handle bottom
Vibration
2 g (IEC 60068-2-6)
Imaging & Optical
Automatic Image Adjustment
Yes
Built-in Digital Camera
Yes
Color palettes
Iron, Rainbow, White hot, Black hot, Arctic, Lava
Detector Pitch
12 µm
Digital image enhancement
Yes
Focus
Focus free
Gallery
Yes
Image Adjustment
Automatic
Image Frequency
8.7 Hz
Image Modes
• MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading
Minimum Focus Distance
0.3 m (0.98 ft.)
Minimum Measurement Distance
0.26 m (0.85 ft)
Spectral Range
7.5–14 µm
Digital Camera Resolution/FOV
2 MP, 71° × 56° FOV
Measurement & Analysis
Center spot
Yes
IR Temperature Resolution
0.1°C (0.2°F)
IR Thermometer Measurement Acquisition
Continuous scanning
Languages
Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
Set-up Commands
• Local adaptation of units, language, date, and time formats • Screen brightness (high, medium, low) • Gallery, deletion of images
Spot Meter
Center spot on/off
Meter Data
Camera size (L x W x H)
210 mm × 64 mm × 81 mm (8.3 in × 2.5 in × 3.2 in)
Camera weight incl battery
0.394 kg (13.9 oz)
Cover Glass Material
Optical-grade silicon
Display
320 × 240 pixel, 2.4 in color LCD
Physical
Weight [battery included]
0.394 kg (13.9 oz.)
Power
Battery operating time
5 hours continuous scanning, 4.5 hours with laser on
Battery Type
Rechargeable Li ion battery
Battery voltage
3.7 V
Charging system
Battery is charged inside the camera
Charging Temperature
0°C to 45°C (32°F to 113°F)
Charging Time
4 hours to 90%, 6 hours to 100%
Power Management
Adjustable: off, 5 min., 15 min., 30 min.
Battery charge life
30 days minimum
Shipping Information
Includes
TG275, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch
Storage Media
Image Storage Capacity
4 GB for storage of up to 50,000 pictures
Memory Expansion
NA
Memory Type
Internal
Saved image format
JPEG
