24 Inch Full HD Monitor

USS Full HD Monitor

Go to Support Page
product image

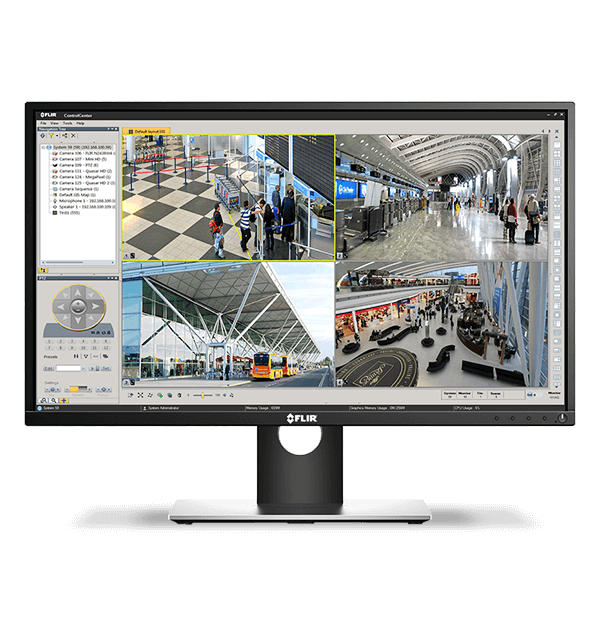

Designed for Latitude, Horizon and Meridian clients, the USS monitor delivers brilliant display quality at Full HD resolution, making it an ideal choice for a complete FLIR solution.

Specifications
Overview
Pixel Pitch
0.275 mm x 0.275 mm
Security
Security lock slot
Warranty
3 Years
VESA Mounting Support
Quick Release feature (100 mm x 100 mm)
Connections & Communications
Connector
VGA | HDMI (1.4) | DP (1.2) | 3 USB 3.0 (2 down, 1 up) | 2 USB 2.0
AC Input
100 to 240 VAC, 50 or 60 Hz ± 3Hz, 1.5 A
Imaging & Optical
Aspect ratio
16:9
Brightness
250 cd/m²
Maximum resolution
Full HD Resolution maximizes detail captured by the cameras
Response Time
6 ms (gray to gray)
Active Display Area
Horizontal: 527.04 mm (20.75 inches) Vertical: 296.46 mm (11.67 inches)
Backlight
LED
Color Depth
16.7 million colors
Color Gamut
0.82
Contrast Ratio
1000:1
Dynamic Contrast Ratio
4 million:1
Panel Technology
In-plane switching, anti-glare with 3H hardness
Viewable Image Size
Diagonal: 60.45 cm (23.8 inches)
Viewing Angle
Vertical/Horizontal 178°/178°
Physical
Stand
Height adjustable stand, tilt, swivel, pivot and built-in cable management
[Missing text '/pages/productpage/presalecontact/contactsales' for 'English (United States)']

Want more information on this product?

Call 201 368-9700 to speak with a knowledgeable specialist.

Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
