3-Axis G-Force USB Datalogger

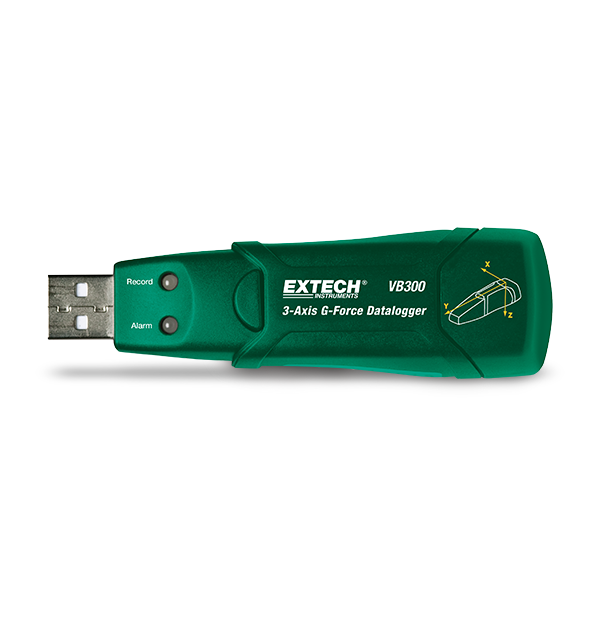

Extech VB300

Go to Product Support
product image

The VB300 is a G-Force datalogger which records and times 3-axis shock and vibration (acceleration) readings over its ±18g measurement range. This device will record 3-axis g-force and related peaks to provide a history of shock and vibration conditions. Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows compatible analysis software.

$233.99

Available for purchase on credit terms. Learn More

Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
Acceleration
±18g
Acceleration Basic Accuracy
±0.5g
Acceleration Max Resolution
0.00625g
Data Format
Time stamped peak acceleration, average and peak vector sum
Datalogging Interval
500 ms to 24 hours (software)
Frequency Bandwidth
0 to 60Hz
Memory
4Mbit Flash; 112028 Motion Detection samples per axis, or 168042 Normal samples
Sampling Rate
200Hz
Sensor Type
MEMS semiconductor
Additional Details
Certifications
CE
Dimensions
3.7 × 1.1 × 0.8" (95 × 28 × 21mm)
Power
1 × 3.6V Lithium battery
Warranty
2 years
Weight
1oz (20g)
Media gallery
Introducing Vibration Meters from Extech Instruments
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
