Vehicle presence detection board

FLIR VIP-3D

Model: FLIR VIP-3D.2
Go to Support Page

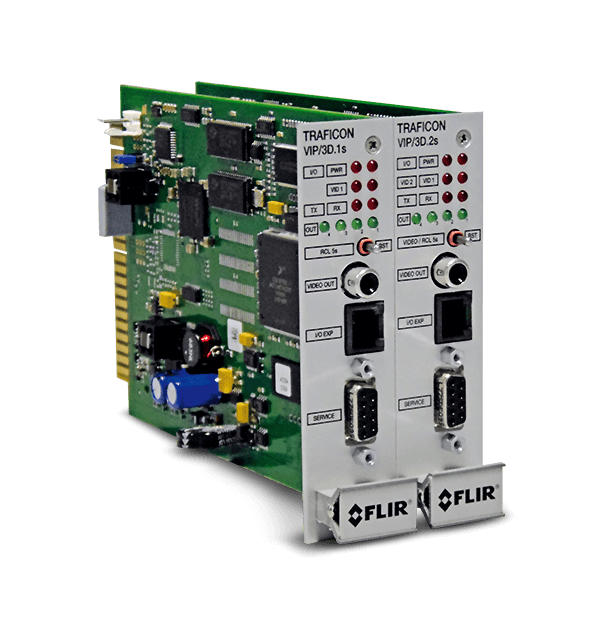

product image

FLIR VIP3D.x is a video detection board that provides vehicle presence information to the intersection controller. FLIR VIP3D.x integrates vehicle presence detection and traffic data collection in one module and provides a powerful solution for intersection control. As a single slot module, VIP3D.x plugs into all standard cabinet racks. The FLIR VIP3D.x module interfaces directly to the controller via cable connected outputs.

Smart intersection control

  • Vehicle presence detection

    VIP boards integrate vehicle presence detection and traffic data collection into one powerful solution for intersection control

  • Robust data collection

    Deploy 8 data collection zones in addition to stop bar and advanced vehicle presence detection.

  • Easy set-up in the field

    No computer required - just connect to a video monitor for user-friendly setup of zone positioning and detection.

Specifications
Overview
Dimensions
4.5 x 1.1 x 7.0 in (114 x 28 x 178 mm)
Power
10.8v to 26.5 VDC
Detection Zones
Up to 20
Connections & Communications
Output
4 outputs (open collector, selectable active low or high) Up to 24 outputs/20 inputs via expansion modules
Video Input
75Ω 1Vpp, PAL or NTSC
Video Output
via BNC connector - front
Double row 22 pins EDGE (NEMA TS2-1992) connector
Back
Push button
Front for reset/recall
RJ11 connector
Front to the expansion modules
Serial Port
Front for setup
Electrical & Mechanical
Consumption
200 mA @ 24 V
LED
For connection to I/O Expansion modules For the communication status / for the outputs status
Environmental & Approvals
Operating Temperature
-34° to +74°C (-29.2° to 165.2°F)
Relative Humidity
0 to 95% relative humidity - non-condensing
IR Illuminator
LED Type
Video in LED

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
