High Voltage Digital Insulation Tester (220V)

Extech 380396

Go to Product Support

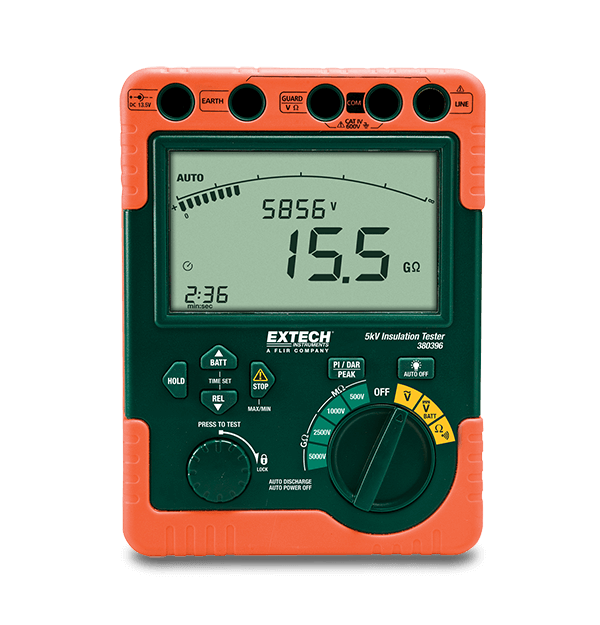

product image

With the Extech 380396, measure insulation resistance to 60 GΩ with test voltages of 500 V, 1000 V, 2500 V, and 5000 V. It features several measurements including polarization index (PI), dielectric absorption ratio (DAR), and AC/DC voltage to 600 V with a min/max function. It also has peak and relative functions, as well as a 1 to 15 minute timer function for IR measurements. Comes with test leads, eight C batteries, 220 V AC adaptor, heavy duty carrying case, and user manual.

Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Voltage
0 to 600V
AC Voltage Basic Accuracy
±1% of reading
Continuity
50Ω
DC Voltage
0 to 600V
DC Voltage Basic Accuracy
±1% of reading
Insulation Resistance
6MΩ, 60MΩ, 600MΩ, 6GΩ, 60GΩ
Insulation Resistance Basic Accuracy
±2.5% of reading
Insulation Test Voltage
500V, 1000V, 2500V, 5000V
Resistance
0 to 600Ω
Additional Details
Certifications
CE
Dimensions
7.8 × 5.8 × 3.4" (198 × 148 × 86mm)
Display
Backlit segment LCD with bargraph
Power
8 × C (1.5V) batteries, 220V AC adaptor
Safety Category
CAT IV-600V
Warranty
2 years
Weight
3.2lb (1438g)
