Single Phase/Three Phase 1000A AC Power Clamp Meter Kit

Extech 380976-K

Model: 380976-K Go to Product Support
product image

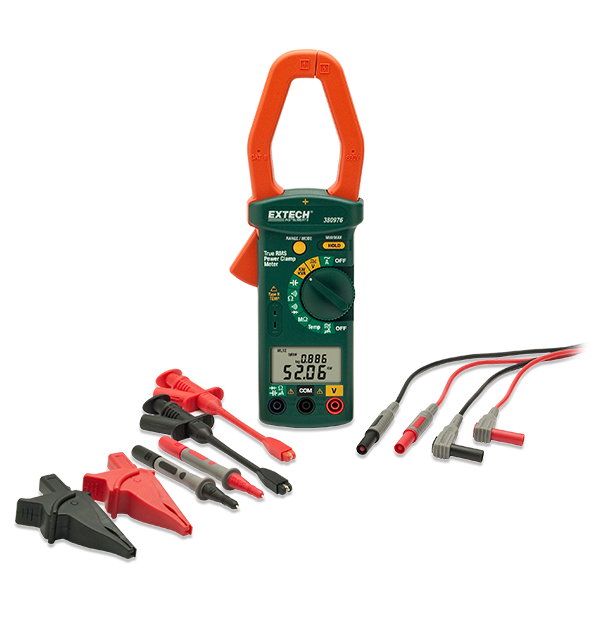

The 380976-K is a Single Phase/3 Phase 1,000 Amp AC Power Clamp Meter Kit. Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator. Auto Detect AC/DC Voltage measurements with simultaneous frequency display. In addition, the supplied test lead kit includes two CAT IV 72" test leads, 2 modular test probe handles, 2 plunger activated jaw clips, and 2 extra-large alligator clips. Complete with test lead kit, Type K probe, carrying case and 9V battery.

$340.99

Available for purchase on credit terms. Learn More

Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Current
1000A
AC Current Basic Accuracy
±2%
AC Current Max Resolution
10mA
AC Microcurrent
1000µA
AC Microcurrent Basic Accuracy
±1%
AC Microcurrent Max Resolution
10nA
AC Voltage
600V
AC Voltage Basic Accuracy
±1%
AC Voltage Max Resolution
0.1mV
Apparent Power
600kVA
Apparent Power Basic Accuracy
±2%
Apparent Power Max Resolution
100VA
Capacitance
7000µF
Capacitance Max Resolution
1nF
DC Microcurrent
1000µA
DC Microcurrent Basic Accuracy
±1%
DC Microcurrent Max Resolution
10nA
DC Voltage
600V
DC Voltage Basic Accuracy
±1%
DC Voltage Max Resolution
0.1mV
Frequency
40Hz to 1kHz
Frequency Basic Accuracy
±0.5%
Frequency Max Resolution
0.1Hz
Horsepower
800HP
Horsepower Basic Accuracy
±5%
Horsepower Max Resolution
0.01HP
Low Resistance
1000kΩ
Low Resistance Basic Accuracy
±1%
Low Resistance Max Resolution
0.1Ω
Phase
-60 to +60°
Phase Basic Accuracy
±6°
Phase Max Resolution
0.1°
Reactive Power
600kVAR
Reactive Power Basic Accuracy
±5%
Reactive Power Max Resolution
10VAR
Resistance
100MΩ
Resistance Max Resolution
1kΩ
Temperature (Type K) Max Resolution
-58 to 1000°F (-50 to 900°C)
Temperature (Type N)
±1%
Temperature (Type N) Basic Accuracy
0.1°F/°C
True Power
600kW / 10W
True Power Basic Accuracy
±5%
True Power Max Resolution
10W
Additional Details
Certifications
CE,UL
Dimensions
9 × 3 × 1.6" (228 × 76 × 39mm)
Power
1 × 9V battery
Safety Category
CATIII - 600V
Warranty
2 years
Weight
16.4oz (465g)
