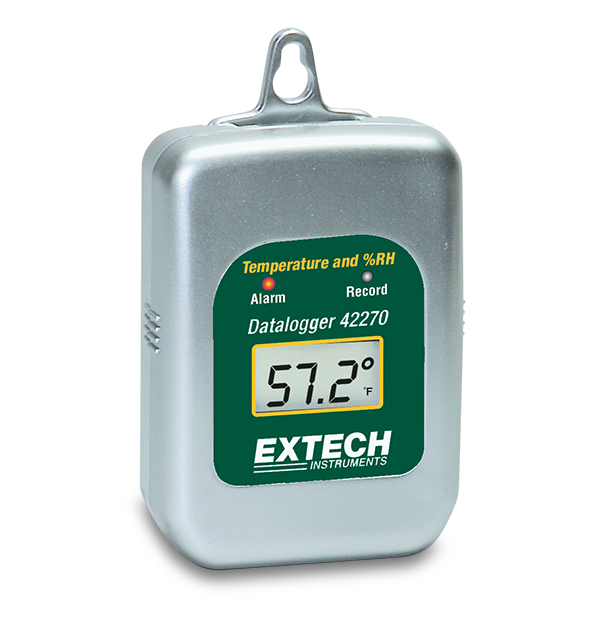

The Extech 42270 is an additional Humidity and Temperature Datalogger for use with the 42275 and 42276 kits. The datalogger measures temperature from -40°C to 85°C (-40°F to 185°F) and relative humidity from 0% to 100%. It can record up to 8000 readings of each parameter. This meter has a programmable sample rate of 1 second to 12 hours plus a high and low alarm. A 42275 or 42276 kit is required to connect the datalogger to a PC for programming and data retrieval.
Specifications
| General | |
|---|---|
| Datalogging Interval | 1 sec to 12 hours |
| Memory | 8,000 points (temperature) + 8,000 points (humidity) |
| Relative Humidity | 0 to 100% |
| Relative Humidity Basic Accuracy | ±3% |
| Relative Humidity Max Resolution | 0.10% |
| Temperature [Air] | -40 to 185 °F (-40 to 85 °C) |
| Temperature [Air] Basic Accuracy | ±1 °F/±0.6 °C |
| Temperature [Air] Max Resolution | 0.1°F/°C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 3 × 2.3 × 0.88" (76 × 57.2 × 22.3mm) |
| IP Rating | IP64 |
| Warranty | 2 years |
| Weight | 2.6oz (72.6g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech TrLog Software
Certification
Extech 42270 Declaration of Conformity
User Manual
Extech 42260 42270 User Manual GB
User Manual
Extech 42270 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
