Motor Rotation and 3-Phase Tester

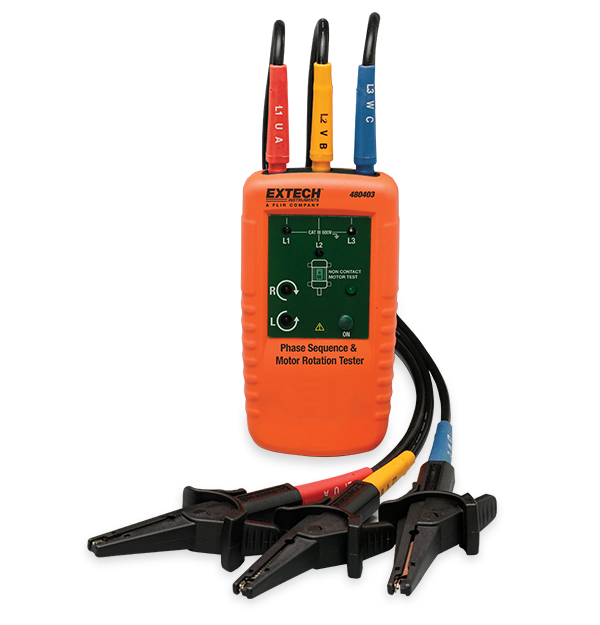

Extech 480403

Go to Product Support
product image

The Extech 480403 Motor Rotation and 3-Phase Tester has a 40 Volt to 600 Volt rated range for testing phase orientation of 3-phase power sources over a 2 Hz to 400 Hz frequency range. LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each of the phases is live. In addition, it indicates rotation direction of the motor to ensure that it doesn't get damaged from incorrect wiring. Meter comes complete with cable and three large color coded alligator clips, pouch case, and 9V battery.

$175.99

Available for purchase on credit terms. Learn More

Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Voltage
40 to 600V AC
Frequency
2 to 400Hz
Motor Rotation
Yes
Phase Sequence
Yes
Additional Details
Certifications
CE
Dimensions
5.1 × 2.7 × 1.25" (130 × 69 × 32mm)
Power
1 × 9V battery
Safety Category
CAT III-600V
Warranty
2 years
Weight
4.5oz (130g)
