Compact HD MWIR InSb Camera

FLIR A8300sc

Go to Support Page

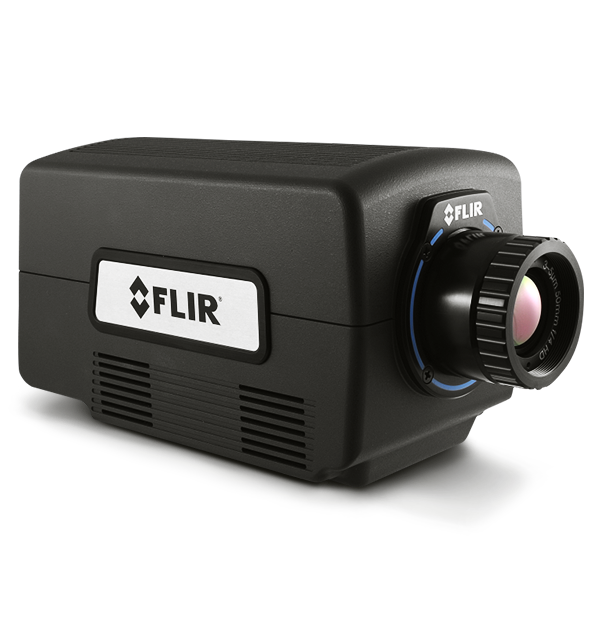

product image

The FLIR A8300sc offers the speeds and sensitivity researchers need to capture rapid thermal events and record the most accurate temperature measurements. This MWIR can stream crisply detailed, low-noise HD data over Gigabit Ethernet and CoaXPress to a PC for live image viewing and recording. With full user control over integration times, synchronization inputs, and window sizes, the A8300sc is the perfect tool for electronics inspection, thermal microscopy, non-destructive testing, and more R&D applications.

High Sensitivity, Low Noise

  • HD Thermal Imagery

    The A8300sc produces crisp, 921,600 pixel (1280 x 720) thermal images with very low noise to capture the finest image details.

  • Fast Integration Times

    Snapshot mode lets you capture every pixel from a scene simultaneously, which is crucial to measuring temperatures of fast-moving objects.

  • Standard Video Interfaces

    Standard interfaces include GigE Vision®, USB3 Vision™, and HD-SDI, and are independently controlled for greater recording and display ?exibility.

Connectivity and Compatibility

Connectivity and Compatibility

The FLIR A8300sc is plug-and-play with third-party software, and works seamlessly with FLIR ResearchIR for intuitive viewing, recording, and advanced processing of thermal data. Use the optional SDK for integration into your own custom software program.

Specifications
Overview
Detector Type
FLIR indium antimonide (InSb)
Dynamic Range
14-bit
Mounting
2 x 1/4"–20, 1 x 3/8"–16, 4 x 10/24
Power
24 VDC (<50 W steady state)
Size [L x W x H ] w/o Lens
8.9 x 4.6 x 5.3 in (226 x 117 x 135 mm)
Spectral Range
3.0 – 5.0 µm
Weight [without lens]
8.2 lbs (3.73 kg)
Well Capacity
5.9 M electrons
Zoom
Video Zoom is Auto Selected; Full Res = 1x, 1/4 Res = 2x
Connections & Communications
Analog Video
NA
Synchronization Modes
Sync In, Sync Out
Environmental
Operating Temperature Range
-40°C to 50°C (-40°F to 122°F )
Optional Temperature Range
Up to 1,500°C (2,732°F) Up to 2,000°C (3,632°F)
Standard Temperature Range
-20°C to 350°C (-4°F to 662°F)
Storage Temperature Range
-55°C to 80°C (-67°F to 176°F )
Imaging & Optical
AGC
Linear, PE, DDE
Available Lenses
17 mm, 25 mm, 50 mm, 100 mm
Camera Control
GenICam
Camera f-number
f/4.0
Close-up Lenses/Microscopes
1x, 4x
Detector Pitch
14 µm
Digital Data Protocol
Gigabit Ethernet (GigE Vision 2.0), USB3 (USB3 Vision), CoaXPress
Filtering
Behind the Lens
Focus
Manual
Frame Rate [Full Window]
60 Hz
HD Video
HD-SDI
Max Frame Rate
60 Hz @ Full Window
Minimum Integration Time
500 ns
Operability
>99.5% (99.9% typical)
Palette
Selectable 8-bit
Readout
Snapshot
Readout Modes
Asynchronous Integrate While Read; Asynchronous Integrate Then Read
Resolution
1280 x 720
Sensor Cooling
Closed Cycle Linear
Subwindow Modes
Flexible (FPA centered)
Command and Control
GenICam
Measurement & Analysis
Accuracy
±2°C or ±2% of reading Valid for 0°C to 3000°C on standard lens & filter configurations only ±1°C or ±1% of reading optional upgrade
NETD
<25 mK* *Measured at 25°C, mid-well, with lens
Thermal Imaging
Detector Resolution
1280 x 720
